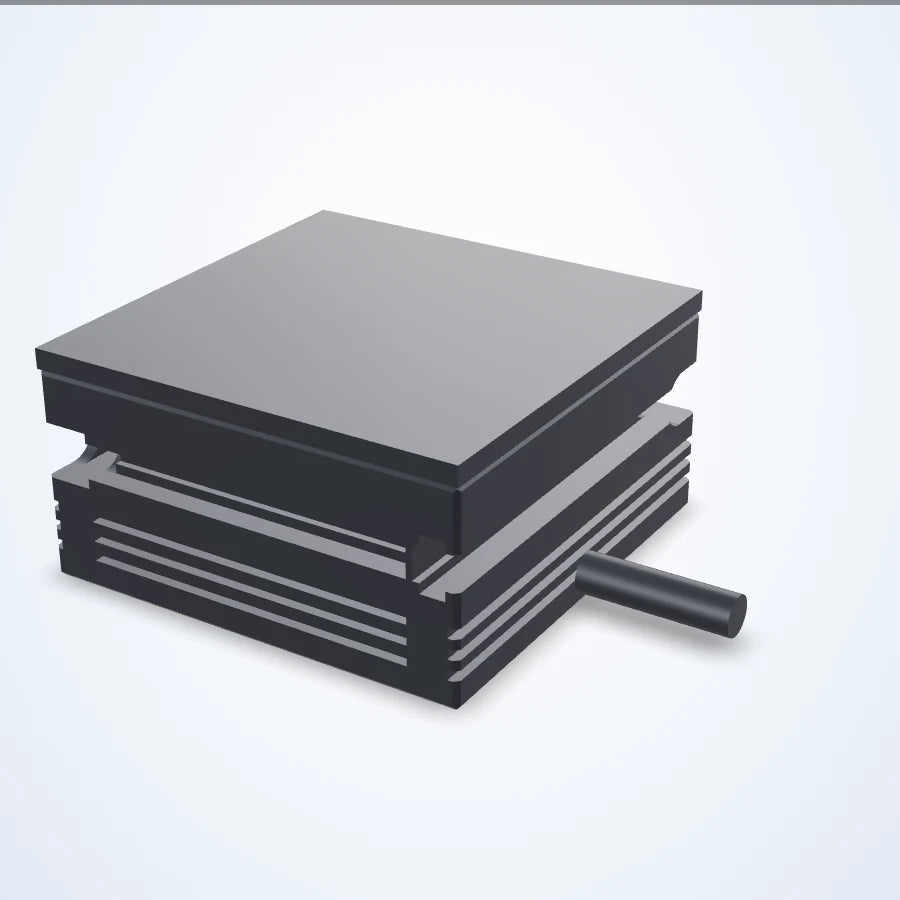

  • LS-2BCP-30X30 3D render
  • LS-2BCP-30X30 dimensions (mm)
  • LS-2BCP-30X30 3D model

Backlights

30 x 30 mm Collimated LED Backlight (LS-2BCP-30X30)

Model LS-2BCP-30X30

  • ColourRed, Green, Blue, White
  • Emitting area30x30 mm
  • Size44x44x23 mm
  • Voltage24 V
  • Power1.44 W
$89.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.2 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

30 x 30 mm Collimated LED Backlight. Collimated bottom-lit backlight in the 2BC-style finned heat-dissipation housing, 23-26 mm thick, with side M3 nut slots usable for installation.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-2BCP-30X30

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)30x30
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)0.86
Power W/B/G (W)1.44

Mechanical

Outer size L x W x H (mm)44x44x23
MountingM3 depth 4 (reverse) on back, qty X per drawing table; M3 nut slots in side profile
Heat sinkFinned heat-dissipation profile
Shipping weight (estimated)0.20 kg

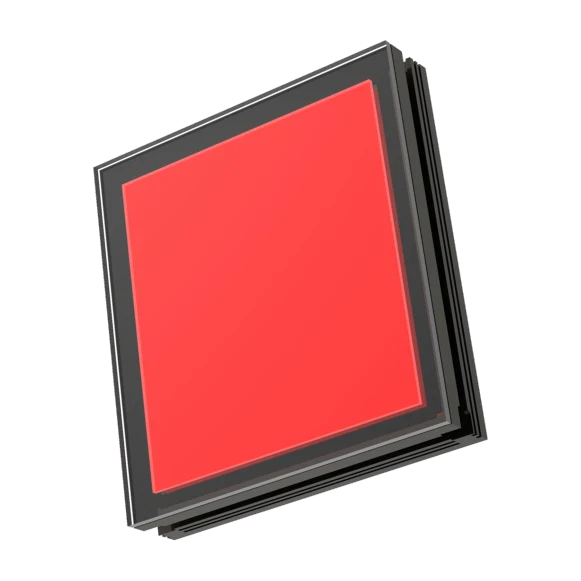

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

drawing table (LS-2BCP-AXB; X = qty of M3 depth-4 mounting holes, E = thickness): X=2, C=blank, D=37, E=23
