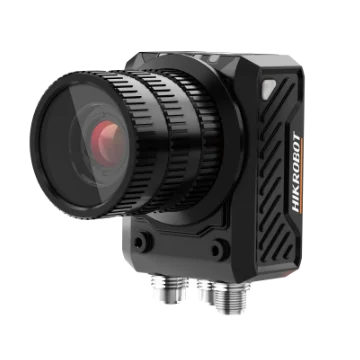

Hikrobot CY-SCD120M-00C-NNN 12 MP mono smart camera

Smart cameras & vision sensors

Hikrobot HIK-YJ6001-C12 Color smart camera

Model HIK-YJ6001-C12Hikrobot

Resolution1408 × 1024
SensorCMOS, global shutter
InterfaceGigabit Ethernet(1000Mbit/s)
Speed60 fps
Lens mountC-mount
Mono / colourColor

$1,699.00

Ships in 2-3 weeks

0.84 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot HIK-YJ6001-C12 Color smart camera. Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more Integrated VM algorithm platform software with free use of 140+ algorithm functions

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	HIK-YJ6001-C12
Brand	Hikrobot
Function module	VisionMaster algorithm development platform (incl. deep learning module)
Lens cap	Transparent lens cap
Indicator	Power indicator PWR, Network indicator LNK, Status indicator STS, User indicator U1/U2

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9"
Resolution	1408 × 1024
Max. frame rate	60 fps
Gain	0 dB ~ 15 dB
Exposure time	16 μs ~ 1 sec
Pixel format	Mono 8, RGB 8
Mono/color	Color

Interfaces and I/O

Communication protocol	TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Data interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	17-pin M12 connector, 2 opto-isolated inputs (Line 0/1), 2 opto-isolated outputs (Line 4/5), 2 non-isolated configurable I/O (line 2/3), 1× RS-232, 1 light outputs (max. 30 W)
Extended interface	VGA × 1, and USB host × 1

Light

Light source	Not included

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Computing

Memory	8 GB
Storage	64 GB

Electrical

Power supply	12~24 VDC
Power consumption	12 W@12 VDC (without external fill light); 12 W@24 VDC (without external fill light); 42 W@24 VDC (with external fill light)

Mechanical

Lens mount	C-Mount

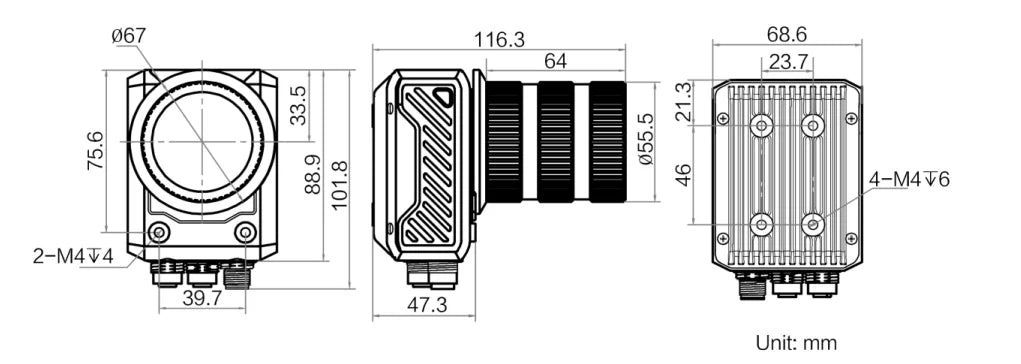

Dimension	116.3mm × 68.6mm × 101.8mm
Weight	530g
Shipping weight (estimated)	0.84 kg

Downloads

Datasheet (PDF, Chinese)HIK-YJ6001-C12 · 699 KB

Features

Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more
Integrated VM algorithm platform software with free use of 140+ algorithm functions
Extensive interface expansion: multiple I/O, direct light drive, display output and more
High-performance processor for faster, more efficient processing
Supports multiple industrial protocols for easy integration
Comprehensive status indicators show device status in real time for easy setup and maintenance
IP67 protection for harsh industrial environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
