Smart cameras & vision sensors

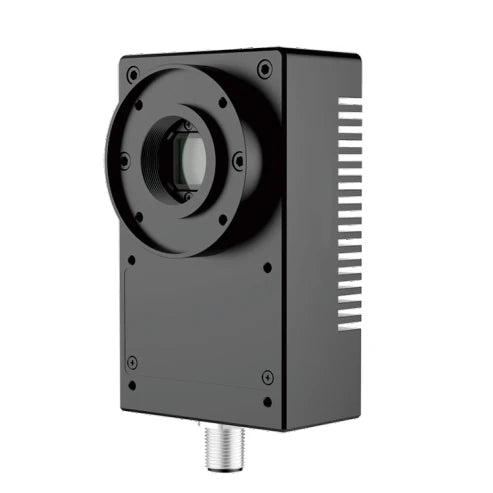

SC / SC(E) smart camera (LS-SMC-S03 platform)
- 17 models
- from $169.00
- Series LS-SMC-S03
The SC / SC(E) smart camera (LS-SMC-S03 platform) is a range of 17 smart cameras & vision sensors from LumaSpec Vision, from $169.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, USB3, Color/Mono, 1.3 MP, USB3, Color/Mono, 1.9 MP, USB3, Color/Mono, 2.3 MP, USB3, Color/Mono, 4.2 MP, USB3, Color/Mono, 5.0 MP, USB3, Color/Mono, 6.4 MP, USB3, Color/Mono, 8.8 MP, USB3, Color/Mono, 10 MP, USB3, Color/Mono, 12 MP, USB3, Color/Mono, 16 MP, USB3, Color/Mono, 20 MP, USB3, Color/Mono
- Interface
- USB 2.0
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 2/3", 1/1.2", 1"
Features
- SC: CPU Intel Atom Z8350 (1.44-1.92GHZ), 2G/32G or 4G/64G (memory/disk)
- SC(E): CPU Intel N4120 (1.1-2.6GHZ), 4G/32G or 4G/64G (memory/disk)
- HDMI x1 display supports 1920 x 1080 resolution, Ethernet 1000M x1, supports GigE Vision cameras
- SC: external USB 2.0 x2 ports; ITAE: USB2.0 x1, USB3.0 x1, trigger x1, flash x1, RS232 x1
- M12 12-core threaded aviation connector, 12V/2A power input
- One input and two output interfaces with settable output delay, no processing needed in the program
- Supports Windows 10 64bit and Ubuntu 16.04 64bit
- Built-in USB 2.0 interface for a dongle, easy to remove
Typical uses
- Code scanning
- Measurement
- Product recognition on the assembly line
- Positioning
- Single-workstation visual inspection
All 17 models in the SC / SC(E) smart camera (LS-SMC-S03 platform)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SMC-0006 | 0.3 MP, USB3, Color/Mono | 790 | 790FPS | 1/5.6" | $169.00 | View |
| LS-SMC-0007 | 1.3 MP, USB3, Color/Mono | 245 | 245FPS | 1/2.7" | $539.00 | View |
| LS-SMC-0008 | 1.3 MP, USB3, Color/Mono | 211 | 211FPS | 1/2" | $539.00 | View |
| LS-SMC-0010 | 2.3 MP, USB3, Color/Mono | 165 | 165FPS | 2/3" | $539.00 | View |
| LS-SMC-0011 | 2.3 MP, USB3, Color/Mono | 165 | 165FPS | 1/1.2" | $539.00 | View |
| LS-SMC-0012 | 2.3 MP, USB3, Color/Mono | 40 | 40FPS | 1/1.2" | $539.00 | View |
| LS-SMC-0017 | 8.8 MP, USB3, Color/Mono | 32 | 32FPS | 1" | $1,229.00 | View |
| LS-SMC-0018 | 10 MP, USB3, Color/Mono | 8 | 8FPS | 1/2.3" | $1,229.00 | View |
| LS-SMC-0019 | 12 MP, USB3, Color/Mono | 32 | 32FPS | 1/1.7" | $1,229.00 | View |
| LS-SMC-0020 | 16 MP, USB3, Color/Mono | 12 | 12FPS | 1/2.3" | $1,229.00 | View |
| LS-SMC-0022 | 8.8 MP, USB3, Color/Mono | 32 | 32FPS | 1" | $1,229.00 | View |
| LS-SMC-0009 | 1.9 MP, USB3, Color/Mono | 60 | 60FPS | 1/1.8" | $1,359.00 | View |
| LS-SMC-0014 | 5.0 MP, USB3, Color/Mono | 40 | 40FPS | 2/3" | $1,359.00 | View |
| LS-SMC-0015 | 5.0 MP, USB3, Color/Mono | 59 | 59FPS | 1/2.5" | $1,359.00 | View |
| LS-SMC-0016 | 6.4 MP, USB3, Color/Mono | 60 | 60FPS | 1/1.8" | $1,359.00 | View |
| LS-SMC-0013 | 4.2 MP, USB3, Color/Mono | 88 | 88FPS | 1" | $1,559.00 | View |
| LS-SMC-0021 | 20 MP, USB3, Color/Mono | 19.5 | 19.5FPS | 1" | $3,129.00 | View |
