Ring lights

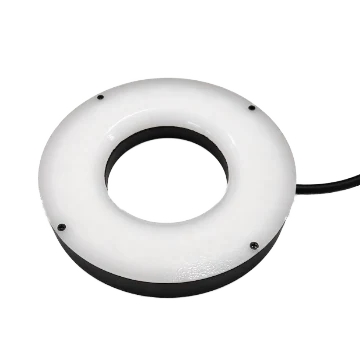

Angled ring lights
- 139 models
- from $89.00
- Series LS-LRDS
The Angled ring lights is a range of 139 ring lights from LumaSpec Vision, from $89.00. It comes in 138 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 45 mm dia., 60°, Blue, 45 mm dia., 60°, Red, 45 mm dia., 60°, White, 45 mm dia., 90°, Blue, 45 mm dia., 90°, Red, 45 mm dia., 90°, White, 55 mm dia., 60°, Blue, 55 mm dia., 60°, Red, 55 mm dia., 60°, White, 55 mm dia., 90°, Blue, 55 mm dia., 90°, Red, 55 mm dia., 90°, White, 65 mm dia., 0°, Blue, 65 mm dia., 0°, Red, 65 mm dia., 0°, White, 65 mm dia., 30°, Blue and 122 more
- Type
- Diffused
- Angle
- Low angle (0-15°), 30°, 45°, 60°, 90°
- Voltage
- 24 V
- Colour
- Red, Blue, White
Features
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
All 139 models in the Angled ring lights
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LRDS-H-45-60-W2 | 45 mm dia., 60°, White | Φ37.5 mm | White | $89.00 | View | |
| LS-LRDS-H-45-60-R2 | 45 mm dia., 60°, Red | Φ37.5 mm | 630 nm | Red | $89.00 | View |
| LS-LRDS-H-45-60-B2 | 45 mm dia., 60°, Blue | Φ37.5 mm | 460 nm | Blue | $89.00 | View |
| LS-LRDS-H-45-90-W2 | 45 mm dia., 90°, White | Φ37.5 mm | White | $89.00 | View | |
| LS-LRDS-H-45-90-R2 | 45 mm dia., 90°, Red | Φ37.5 mm | 630 nm | Red | $89.00 | View |
| LS-LRDS-H-45-90-B2 | 45 mm dia., 90°, Blue | Φ37.5 mm | 460 nm | Blue | $89.00 | View |
| LS-LRDS-H-55-60-W2 | 55 mm dia., 60°, White | Φ47.5 mm | White | $99.00 | View | |
| LS-LRDS-H-55-60-R2 | 55 mm dia., 60°, Red | Φ47.5 mm | 630 nm | Red | $99.00 | View |
| LS-LRDS-H-55-60-B2 | 55 mm dia., 60°, Blue | Φ47.5 mm | 460 nm | Blue | $99.00 | View |
| LS-LRDS-H-55-90-W2 | 55 mm dia., 90°, White | Φ47.5 mm | White | $99.00 | View | |
| LS-LRDS-H-55-90-R2 | 55 mm dia., 90°, Red | Φ47.5 mm | 630 nm | Red | $99.00 | View |
| LS-LRDS-H-55-90-B2 | 55 mm dia., 90°, Blue | Φ47.5 mm | 460 nm | Blue | $99.00 | View |
| LS-LRDS-H-65-0-W2 | 65 mm dia., 0°, White | Φ40 mm | White | $109.00 | View | |
| LS-LRDS-H-65-0-R2 | 65 mm dia., 0°, Red | Φ40 mm | 630 nm | Red | $109.00 | View |
| LS-LRDS-H-65-0-B2 | 65 mm dia., 0°, Blue | Φ40 mm | 460 nm | Blue | $109.00 | View |
| LS-LRDS-H-65-30-W2 | 65 mm dia., 30°, White | Φ57.5 mm | White | $109.00 | View | |
| LS-LRDS-H-65-30-R2 | 65 mm dia., 30°, Red | Φ57.5 mm | 630 nm | Red | $109.00 | View |
| LS-LRDS-H-65-30-B2 | 65 mm dia., 30°, Blue | Φ57.5 mm | 460 nm | Blue | $109.00 | View |
| LS-LRDS-H-65-60-W2 | 65 mm dia., 60°, White | Φ57.5 mm | White | $109.00 | View | |
| LS-LRDS-H-65-60-R2 | 65 mm dia., 60°, Red | Φ57.5 mm | 630 nm | Red | $109.00 | View |
| LS-LRDS-H-65-60-B2 | 65 mm dia., 60°, Blue | Φ57.5 mm | 460 nm | Blue | $109.00 | View |
| LS-LRDS-H-65-90-W2 | 65 mm dia., 90°, White | Φ57.5 mm | White | $109.00 | View | |
| LS-LRDS-H-65-90-R2 | 65 mm dia., 90°, Red | Φ57.5 mm | 630 nm | Red | $109.00 | View |
| LS-LRDS-H-65-90-B2 | 65 mm dia., 90°, Blue | Φ57.5 mm | 460 nm | Blue | $109.00 | View |
| LS-LRDS-H-73-90-W2 | 73 mm dia., 90°, White | Φ65.5 mm | White | $129.00 | View | |
| LS-LRDS-H-73-90-R2 | 73 mm dia., 90°, Red | Φ65.5 mm | 630 nm | Red | $129.00 | View |
| LS-LRDS-H-73-90-B2 | 73 mm dia., 90°, Blue | Φ65.5 mm | 460 nm | Blue | $129.00 | View |
| LS-LRDS-H-80-15-W2 | 80 mm dia., 15°, White | Φ72 mm | White | $139.00 | View | |
| LS-LRDS-H-80-15-R2 | 80 mm dia., 15°, Red | Φ72 mm | 630 nm | Red | $139.00 | View |
| LS-LRDS-H-80-15-B2 | 80 mm dia., 15°, Blue | Φ72 mm | 460 nm | Blue | $139.00 | View |
| LS-LRDS-H-80-30-W2 | 80 mm dia., 30°, White | Φ72 mm | White | $139.00 | View | |
| LS-LRDS-H-80-30-R2 | 80 mm dia., 30°, Red | Φ72 mm | 630 nm | Red | $139.00 | View |
| LS-LRDS-H-80-30-B2 | 80 mm dia., 30°, Blue | Φ72 mm | 460 nm | Blue | $139.00 | View |
| LS-LRDS-H-80-60-W2 | 80 mm dia., 60°, White | Φ72 mm | White | $139.00 | View | |
| LS-LRDS-H-80-60-R2 | 80 mm dia., 60°, Red | Φ72 mm | 630 nm | Red | $139.00 | View |
| LS-LRDS-H-80-60-B2 | 80 mm dia., 60°, Blue | Φ72 mm | 460 nm | Blue | $139.00 | View |
| LS-LRDS-H-80-90-W2 | 80 mm dia., 90°, White | Φ72 mm | White | $139.00 | View | |
| LS-LRDS-H-80-90-R2 | 80 mm dia., 90°, Red | Φ72 mm | 630 nm | Red | $139.00 | View |
| LS-LRDS-H-80-90-B2 | 80 mm dia., 90°, Blue | Φ72 mm | 460 nm | Blue | $139.00 | View |
| LS-LRDS-H-95-0-W2 | 95 mm dia., 0°, White | Φ70 mm | White | $159.00 | View | |
| LS-LRDS-H-95-0-R2 | 95 mm dia., 0°, Red | Φ70 mm | 630 nm | Red | $159.00 | View |
| LS-LRDS-H-95-0-B2 | 95 mm dia., 0°, Blue | Φ70 mm | 460 nm | Blue | $159.00 | View |
| LS-LRDS-H-95-30-W2 | 95 mm dia., 30°, White | Φ87 mm | White | $159.00 | View | |
| LS-LRDS-H-95-30-R2 | 95 mm dia., 30°, Red | Φ87 mm | 630 nm | Red | $159.00 | View |
| LS-LRDS-H-95-30-B2 | 95 mm dia., 30°, Blue | Φ87 mm | 460 nm | Blue | $159.00 | View |
| LS-LRDS-H-95-60-W2 | 95 mm dia., 60°, White | Φ87 mm | White | $159.00 | View | |
| LS-LRDS-H-95-60-R2 | 95 mm dia., 60°, Red | Φ87 mm | 630 nm | Red | $159.00 | View |
| LS-LRDS-H-95-60-B2 | 95 mm dia., 60°, Blue | Φ87 mm | 460 nm | Blue | $159.00 | View |
| LS-LRDS-H-95-90-W2 | 95 mm dia., 90°, White | Φ87 mm | White | $159.00 | View | |
| LS-LRDS-H-95-90-R2 | 95 mm dia., 90°, Red | Φ87 mm | 630 nm | Red | $159.00 | View |
| LS-LRDS-H-95-90-B2 | 95 mm dia., 90°, Blue | Φ87 mm | 460 nm | Blue | $159.00 | View |
| LS-LRDS-H-105-0-W2 | 105 mm dia., 0°, White | Φ75 mm | White | $169.00 | View | |
| LS-LRDS-H-105-0-R2 | 105 mm dia., 0°, Red | Φ75 mm | 630 nm | Red | $169.00 | View |
| LS-LRDS-H-105-0-B2 | 105 mm dia., 0°, Blue | Φ75 mm | 460 nm | Blue | $169.00 | View |
| LS-LRDS-H-105-15-W2 | 105 mm dia., 15°, White | Φ92 mm | White | $169.00 | View | |
| LS-LRDS-H-105-15-R2 | 105 mm dia., 15°, Red | Φ92 mm | 630 nm | Red | $169.00 | View |
| LS-LRDS-H-105-15-B2 | 105 mm dia., 15°, Blue | Φ92 mm | 460 nm | Blue | $169.00 | View |
| LS-LRDS-H-105-30-W2 | 105 mm dia., 30°, White | Φ92 mm | White | $169.00 | View | |
| LS-LRDS-H-105-30-R2 | 105 mm dia., 30°, Red | Φ92 mm | 630 nm | Red | $169.00 | View |
| LS-LRDS-H-105-30-B2 | 105 mm dia., 30°, Blue | Φ92 mm | 460 nm | Blue | $169.00 | View |
| LS-LRDS-H-105-45-W2 | 105 mm dia., 45°, White | Φ92 mm | White | $169.00 | View | |
| LS-LRDS-H-105-45-R2 | 105 mm dia., 45°, Red | Φ92 mm | 630 nm | Red | $169.00 | View |
| LS-LRDS-H-105-45-B2 | 105 mm dia., 45°, Blue | Φ92 mm | 460 nm | Blue | $169.00 | View |
| LS-LRDS-H-105-60-W2 | 105 mm dia., 60°, White | Φ92 mm | White | $169.00 | View | |
| LS-LRDS-H-105-60-R2 | 105 mm dia., 60°, Red | Φ92 mm | 630 nm | Red | $169.00 | View |
| LS-LRDS-H-105-60-B2 | 105 mm dia., 60°, Blue | Φ92 mm | 460 nm | Blue | $169.00 | View |
| LS-LRDS-H-105-90-W2 | 105 mm dia., 90°, White | Φ92 mm | White | $169.00 | View | |
| LS-LRDS-H-105-90-R2 | 105 mm dia., 90°, Red | Φ92 mm | 630 nm | Red | $169.00 | View |
| LS-LRDS-H-105-90-B2 | 105 mm dia., 90°, Blue | Φ92 mm | 460 nm | Blue | $169.00 | View |
| LS-LRDS-H-120-0-W2 | 120 mm dia., 0°, White | Φ90 mm | White | $189.00 | View | |
| LS-LRDS-H-120-0-R2 | 120 mm dia., 0°, Red | Φ90 mm | 630 nm | Red | $189.00 | View |
| LS-LRDS-H-120-0-B2 | 120 mm dia., 0°, Blue | Φ90 mm | 460 nm | Blue | $189.00 | View |
| LS-LRDS-H-120-30-W2 | 120 mm dia., 30°, White | Φ107 mm | White | $189.00 | View | |
| LS-LRDS-H-120-30-R2 | 120 mm dia., 30°, Red | Φ107 mm | 630 nm | Red | $189.00 | View |
| LS-LRDS-H-120-30-B2 | 120 mm dia., 30°, Blue | Φ107 mm | 460 nm | Blue | $189.00 | View |
| LS-LRDS-H-120-45-W2 | 120 mm dia., 45°, White | Φ107 mm | White | $189.00 | View | |
| LS-LRDS-H-120-45-R2 | 120 mm dia., 45°, Red | Φ107 mm | 630 nm | Red | $189.00 | View |
| LS-LRDS-H-120-45-B2 | 120 mm dia., 45°, Blue | Φ107 mm | 460 nm | Blue | $189.00 | View |
| LS-LRDS-H-120-60-W2 | 120 mm dia., 60°, White | Φ107 mm | White | $189.00 | View | |
| LS-LRDS-H-120-60-R2 | 120 mm dia., 60°, Red | Φ107 mm | 630 nm | Red | $189.00 | View |
| LS-LRDS-H-120-60-B2 | 120 mm dia., 60°, Blue | Φ107 mm | 460 nm | Blue | $189.00 | View |
| LS-LRDS-H-120-75-W2 | 120 mm dia., 75°, White | Φ107 mm | White | $189.00 | View | |
| LS-LRDS-H-120-75-R2 | 120 mm dia., 75°, Red | Φ107 mm | 630 nm | Red | $189.00 | View |
| LS-LRDS-H-120-75-B2 | 120 mm dia., 75°, Blue | Φ107 mm | 460 nm | Blue | $189.00 | View |
| LS-LRDS-H-120-90-W2 | 120 mm dia., 90°, White | Φ107 mm | White | $189.00 | View | |
| LS-LRDS-H-120-90-R2 | 120 mm dia., 90°, Red | Φ107 mm | 630 nm | Red | $189.00 | View |
| LS-LRDS-H-120-90-B2 | 120 mm dia., 90°, Blue | Φ107 mm | 460 nm | Blue | $189.00 | View |
| LS-LRDS-H-140-15-W2 | 140 mm dia., 15°, White | Φ127 mm | White | $219.00 | View | |
| LS-LRDS-H-140-15-R2 | 140 mm dia., 15°, Red | Φ127 mm | 630 nm | Red | $219.00 | View |
| LS-LRDS-H-140-15-B2 | 140 mm dia., 15°, Blue | Φ127 mm | 460 nm | Blue | $219.00 | View |
| LS-LRDS-H-140-45-W2 | 140 mm dia., 45°, White | Φ127 mm | White | $219.00 | View | |
| LS-LRDS-H-140-45-R2 | 140 mm dia., 45°, Red | Φ127 mm | 630 nm | Red | $219.00 | View |
| LS-LRDS-H-140-45-B2 | 140 mm dia., 45°, Blue | Φ127 mm | 460 nm | Blue | $219.00 | View |
| LS-LRDS-H-140-90-W2 | 140 mm dia., 90°, White | Φ127 mm | White | $219.00 | View | |
| LS-LRDS-H-140-90-R2 | 140 mm dia., 90°, Red | Φ127 mm | 630 nm | Red | $219.00 | View |
| LS-LRDS-H-140-90-B2 | 140 mm dia., 90°, Blue | Φ127 mm | 460 nm | Blue | $219.00 | View |
| LS-LRDS-H-160-0-R2 | 160 mm dia., 0°, Red | Φ130 mm | 630 nm | Red | $239.00 | View |
| LS-LRDS-H-160-0-B2 | 160 mm dia., 0°, Blue | Φ130 mm | 460 nm | Blue | $239.00 | View |
| LS-LRDS-H-160-0-W2 | 160 mm dia., 0°, White | Φ130 mm | White | $239.00 | View | |
| LS-LRDS-H-160-90-W2 | 160 mm dia., 90°, White | Φ147 mm | White | $239.00 | View | |
| LS-LRDS-H-160-30-W2 | 160 mm dia., 30°, White | Φ147 mm | White | $239.00 | View | |
| LS-LRDS-H-160-30-R2 | 160 mm dia., 30°, Red | Φ147 mm | 630 nm | Red | $239.00 | View |
| LS-LRDS-H-160-30-B2 | 160 mm dia., 30°, Blue | Φ147 mm | 460 nm | Blue | $239.00 | View |
| LS-LRDS-H-160-60-W2 | 160 mm dia., 60°, White | Φ147 mm | White | $239.00 | View | |
| LS-LRDS-H-160-60-R2 | 160 mm dia., 60°, Red | Φ147 mm | 630 nm | Red | $239.00 | View |
| LS-LRDS-H-160-60-B2 | 160 mm dia., 60°, Blue | Φ147 mm | 460 nm | Blue | $239.00 | View |
| LS-LRDS-H-160-90-R2 | 160 mm dia., 90°, Red | Φ147 mm | 630 nm | Red | $239.00 | View |
| LS-LRDS-H-160-90-B2 | 160 mm dia., 90°, Blue | Φ147 mm | 460 nm | Blue | $239.00 | View |
| LS-LRDS-H-180-0-W2 | 180 mm dia., 0°, White | Φ150 mm | White | $269.00 | View | |
| LS-LRDS-H-180-0-R2 | 180 mm dia., 0°, Red | Φ150 mm | 630 nm | Red | $269.00 | View |
| LS-LRDS-H-180-0-B2 | 180 mm dia., 0°, Blue | Φ150 mm | 460 nm | Blue | $269.00 | View |
| LS-LRDS-H-180-15-W2 | 180 mm dia., 15°, White | Φ167 mm | White | $269.00 | View | |
| LS-LRDS-H-180-15-R2 | 180 mm dia., 15°, Red | Φ167 mm | 630 nm | Red | $269.00 | View |
| LS-LRDS-H-180-15-B2 | 180 mm dia., 15°, Blue | Φ167 mm | 460 nm | Blue | $269.00 | View |
| LS-LRDS-H-180-45-W2 | 180 mm dia., 45°, White | Φ167 mm | White | $269.00 | View | |
| LS-LRDS-H-180-45-R2 | 180 mm dia., 45°, Red | Φ167 mm | 630 nm | Red | $269.00 | View |
| LS-LRDS-H-180-45-B2 | 180 mm dia., 45°, Blue | Φ167 mm | 460 nm | Blue | $269.00 | View |
| LS-LRDS-H-180-60-W2 | 180 mm dia., 60°, White | Φ167 mm | White | $269.00 | View | |
| LS-LRDS-H-180-60-R2 | 180 mm dia., 60°, Red | Φ167 mm | 630 nm | Red | $269.00 | View |
| LS-LRDS-H-180-60-B2 | 180 mm dia., 60°, Blue | Φ167 mm | 460 nm | Blue | $269.00 | View |
| LS-LRDS-H-180-75-W2 | 180 mm dia., 75°, White | Φ167 mm | White | $269.00 | View | |
| LS-LRDS-H-180-75-R2 | 180 mm dia., 75°, Red | Φ167 mm | 630 nm | Red | $269.00 | View |
| LS-LRDS-H-180-75-B2 | 180 mm dia., 75°, Blue | Φ167 mm | 460 nm | Blue | $269.00 | View |
| LS-LRDS-H-180-90-W2 | 180 mm dia., 90°, White | Φ167 mm | White | $269.00 | View | |
| LS-LRDS-H-180-90-R2 | 180 mm dia., 90°, Red | Φ167 mm | 630 nm | Red | $269.00 | View |
| LS-LRDS-H-180-90-B2 | 180 mm dia., 90°, Blue | Φ167 mm | 460 nm | Blue | $269.00 | View |
| LS-LRDS-H-200-0-W2 | 200 mm dia., 0°, White | Φ170 mm | White | $299.00 | View | |
| LS-LRDS-H-200-90-W2 | 200 mm dia., 90°, White | Φ187 mm | White | $299.00 | View | |
| LS-LRDS-H-200-0-R2 | 200 mm dia., 0°, Red | Φ170 mm | 630 nm | Red | $299.00 | Request a quote |
| LS-LRDS-H-200-0-B2 | 200 mm dia., 0°, Blue | Φ170 mm | 460 nm | Blue | $299.00 | Request a quote |
| LS-LRDS-H-200-30-W2 | 200 mm dia., 30°, White | Φ187 mm | White | $299.00 | Request a quote | |
| LS-LRDS-H-200-30-R2 | 200 mm dia., 30°, Red | Φ187 mm | 630 nm | Red | $299.00 | Request a quote |
| LS-LRDS-H-200-30-B2 | 200 mm dia., 30°, Blue | Φ187 mm | 460 nm | Blue | $299.00 | Request a quote |
| LS-LRDS-H-200-90-R2 | 200 mm dia., 90°, Red | Φ187 mm | 630 nm | Red | $299.00 | Request a quote |
| LS-LRDS-H-200-90-B2 | 200 mm dia., 90°, Blue | Φ187 mm | 460 nm | Blue | $299.00 | Request a quote |
| LS-LRDS-H-230-15-W2 | 230 mm dia., 15°, White | Φ217 mm | White | $339.00 | Request a quote | |
| LS-LRDS-H-230-15-R2 | 230 mm dia., 15°, Red | Φ217 mm | 630 nm | Red | $339.00 | Request a quote |
| LS-LRDS-H-230-15-B2 | 230 mm dia., 15°, Blue | Φ217 mm | 460 nm | Blue | $339.00 | Request a quote |
| LS-LRDS-H-230-60-W2 | 230 mm dia., 15°, White | Φ217 mm | White | $339.00 | Request a quote |
