Ring Light, 95 mm dia., 60°, White (LS-RNG-0402)
  • Ring Light, 95 mm dia., 60°, White (LS-RNG-0402)
  • LS-RNG-0402 dimensions (mm)

Ring lights

Ring Light, 95 mm dia., 60°, White (LS-RNG-0402)

Model LS-RNG-0402

  • ColourWhite
  • Emitting areaΦ87 mm
  • SizeΦ95 mm × 16 mm
  • Voltage24 VDC
  • Power14.8 W
$319.00

Ships in 2-3 weeks

0.32 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 95 mm dia., 60°, White (LS-RNG-0402)LS-RNG-0402

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-RNG-0402: dimension Φ95 mm x 16 mm, bore dimension Φ45 mm, emitting area length Φ87 mm, irradiation angle 60°, power 14.8 W.

Ring Light, 95 mm dia., 60°, White. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0402
Irradiation angle60°

Optics

Best working distance60 ~ 100 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorWhite
Center illuminance≥22000 Lux @ WD=100 mm
Color temperature6000 ~ 7500K
Emitting area lengthΦ87 mm
LED rows2
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power14.8 W
Input voltage24 VDC

Mechanical

DimensionΦ95 mm × 16 mm
Outer dimensionΦ95 mm
Bore dimensionΦ45 mm
Weight160 g
Shipping weight (estimated)0.32 kg

Engineering data

Drive and fit the LS-RNG-0402

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V617 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 14.8 W
Operating temperature0 to 40 °C
Cable length1 m
Center illuminance≥ 22000 luxat WD 100 mm

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

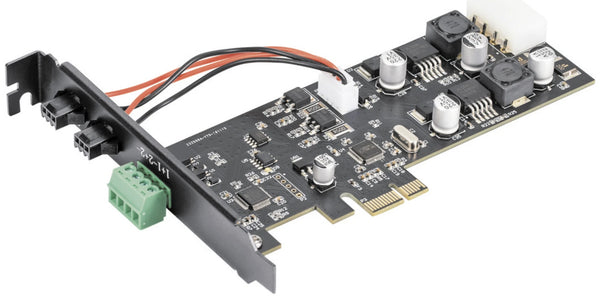

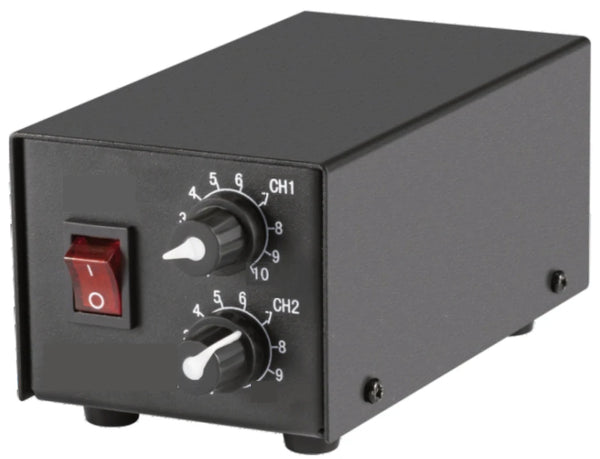

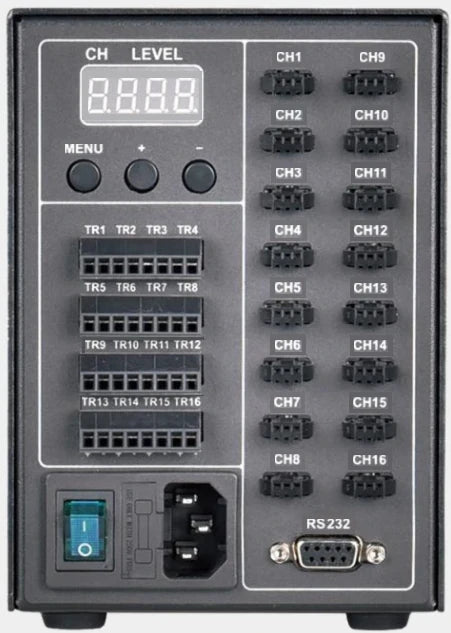

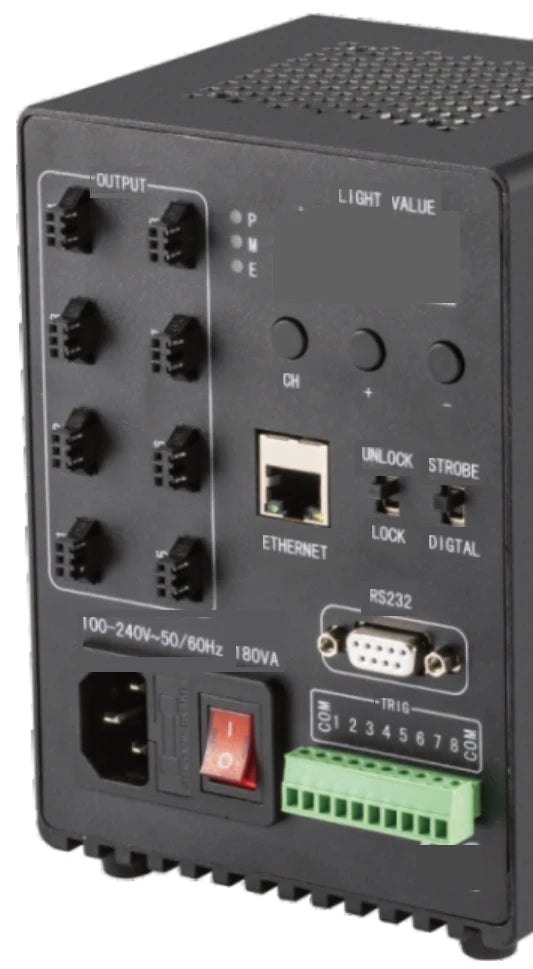

Controllers for this light

20 W per channel at 24 V for this 14.8 W light

15 W per channel at 24 V for this 14.8 W light

24 W per channel at 24 V for this 14.8 W light

24 W per channel at 24 V for this 14.8 W light

15 W per channel at 24 V for this 14.8 W light

21.9 W per channel at 24 V for this 14.8 W light

Light cables

Other models in the Angled ring lights (LS-RNG-S59) series

See all 139 models
ModelEmitting areaSizePowerPriceAvailabilityLink
LS-RNG-0402This modelΦ87 mmΦ95 mm × 16 mm14.8 W$319.00 Ships in 2-3 weeks
LS-RNG-0420Φ92 mmΦ105 mm × 18 mm17.3 W$279.00 Ships in 2-3 weeks View
LS-RNG-0419Φ92 mmΦ105 mm × 18 mm11.9 W$279.00 Ships in 2-3 weeks View
LS-RNG-0418Φ92 mmΦ105 mm × 18 mm13.8 W$279.00 Ships in 2-3 weeks View
LS-RNG-0423Φ92 mmΦ105 mm × 18 mm16.1 W$279.00 Ships in 2-3 weeks View
LS-RNG-0422Φ92 mmΦ105 mm × 18 mm11.7 W$279.00 Ships in 2-3 weeks View
LS-RNG-0421Φ92 mmΦ105 mm × 18 mm12.1 W$279.00 Ships in 2-3 weeks View
LS-RNG-0396Φ70 mmΦ95 mm × 15 mm5.3 W$319.00 Ships in 2-3 weeks View
LS-RNG-0395Φ70 mmΦ95 mm × 15 mm3.2 W$319.00 Ships in 2-3 weeks View
LS-RNG-0394Φ70 mmΦ95 mm × 15 mm4 W$319.00 Ships in 2-3 weeks View
LS-RNG-0399Φ87 mmΦ95 mm × 16 mm14.8 W$319.00 Ships in 2-3 weeks View
LS-RNG-0398Φ87 mmΦ95 mm × 16 mm8.9 W$319.00 Ships in 2-3 weeks View
LS-RNG-0397Φ87 mmΦ95 mm × 16 mm12.1 W$319.00 Ships in 2-3 weeks View
LS-RNG-0401Φ87 mmΦ95 mm × 16 mm8.9 W$319.00 Ships in 2-3 weeks View
LS-RNG-0400Φ87 mmΦ95 mm × 16 mm12.1 W$319.00 Ships in 2-3 weeks View
LS-RNG-0405Φ87 mmΦ95 mm × 16 mm14.5 W$319.00 Ships in 2-3 weeks View
LS-RNG-0404Φ87 mmΦ95 mm × 16 mm10.7 W$319.00 Ships in 2-3 weeks View
LS-RNG-0403Φ87 mmΦ95 mm × 16 mm11.5 W$319.00 Ships in 2-3 weeks View
LS-RNG-0426Φ90 mmΦ120 mm × 16 mm8.6 W$319.00 Ships in 2-3 weeks View
LS-RNG-0425Φ90 mmΦ120 mm × 16 mm5.0 W$319.00 Ships in 2-3 weeks View
LS-RNG-0424Φ90 mmΦ120 mm × 16 mm6.7 W$319.00 Ships in 2-3 weeks View
LS-RNG-0429Φ107 mmΦ120 mm × 18 mm25 W$319.00 Ships in 2-3 weeks View
LS-RNG-0428Φ107 mmΦ120 mm × 18 mm16.8 W$319.00 Ships in 2-3 weeks View
LS-RNG-0427Φ107 mmΦ120 mm × 18 mm20.3 W$319.00 Ships in 2-3 weeks View
LS-RNG-0432Φ107 mmΦ120 mm × 18 mm25 W$319.00 Ships in 2-3 weeks View
