Collimated lights

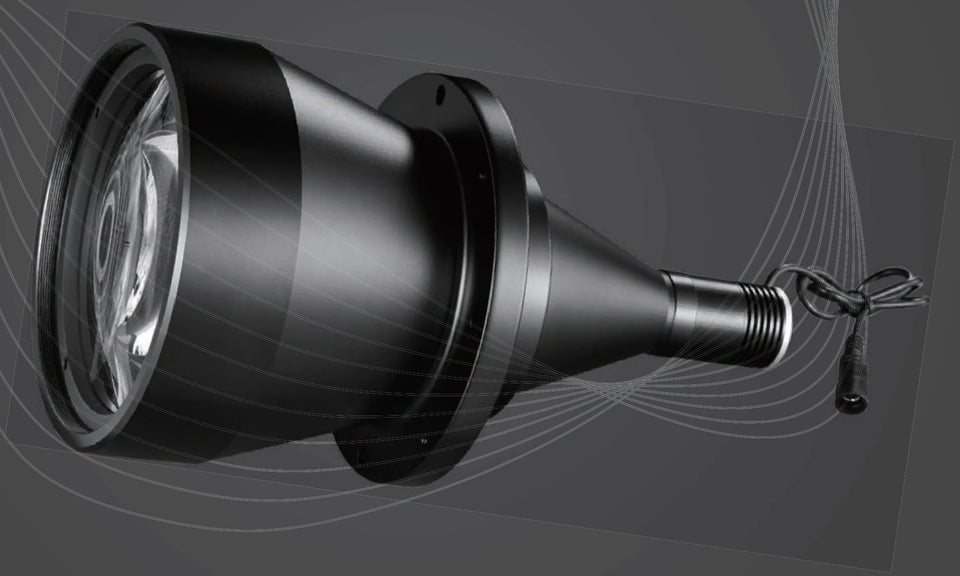

Collimated (telecentric) illumination, beam dia. 26-240 mm (LS-CLM-S08)
- 27 models
- from $489.00
- Series LS-CLM-S08
The Collimated (telecentric) illumination, beam dia. 26-240 mm (LS-CLM-S08) is a range of 27 collimated lights from LumaSpec Vision, from $489.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm
- Voltage
- 3 V
- Type
- Telecentric
Features
- Specially designed for telecentric lens imaging
- Backlight directly, or ortho illumination (spectral devices are required)
- Parallel illumination makes full use of the imaging potential of telecentric lenses and greatly improves system accuracy
- Parallel illumination can optimise the depth of field far beyond the nominal value
- Multiple wavelengths, 1W / 3W power selection, built-in brightness adjustment
- Specially designed for telecentric lens imaging; directly realises backlight or ortho illumination (spectral devices are required)
- Parallel illumination makes full use of the imaging potential of the telecentric lens and greatly improves system accuracy
- Parallel illumination optimises the depth of field of the imaging system so that it is far beyond the nominal value
Typical uses
- Telecentric backlight / coaxial (ortho) illumination for telecentric lenses
- Backlight or ortho illumination for telecentric lens imaging and measurement
- Backlighting for telecentric lens measurement
All 27 models in the Collimated (telecentric) illumination, beam dia. 26-240 mm (LS-CLM-S08)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CLM-0066 | 23-46 | 124.8 | 44 | 26 | $489.00 | View |
| LS-CLM-0067 | 36-72 | 144.9 | 54 | 36 | $579.00 | View |
| LS-CLM-0068 | 40-80 | 130.4 | 62 | 42 | $629.00 | View |
| LS-CLM-0069 | 111.4 | 62 | $629.00 | View | ||
| LS-CLM-0070 | 43-86 | 143.9 | 64 | 48 | $679.00 | View |
| LS-CLM-0071 | 46-92 | 166.4 | 78 | 56 | $749.00 | View |
| LS-CLM-0072 | 62-126 | 136 | 84 | 64 | $829.00 | View |
| LS-CLM-0074 | 50-107 | 150.2 | 85 | 64 | $829.00 | View |
| LS-CLM-0073 | 63-126 | 178.9 | 84 | 64 | $829.00 | View |
| LS-CLM-0075 | 59-119 | 177.5 | 94 | 72 | $899.00 | View |
| LS-CLM-0076 | 75-154 | 170.2 | 104 | 80 | $969.00 | View |
| LS-CLM-0077 | 76-152 | 188.8 | 110 | 80 | $969.00 | View |
| LS-CLM-0078 | 170.5 | 100 | $969.00 | View | ||
| LS-CLM-0079 | 69-139 | 223.9 | 120 | 90 | $1,059.00 | View |
| LS-CLM-0080 | 83-170 | 182.3 | 140 | 100 | $1,149.00 | View |
| LS-CLM-0081 | 247.5 | 142 | $1,149.00 | View | ||
| LS-CLM-0082 | 82-168 | 241.4 | 156 | 110 | $1,239.00 | View |
| LS-CLM-0083 | 93-186 | 288.8 | 160 | 120 | $1,339.00 | View |
| LS-CLM-0084 | 95-193 | 358.7 | 184 | 136 | $1,489.00 | View |
| LS-CLM-0085 | 100-200 | 332.1 | 189 | 150 | $1,619.00 | View |
| LS-CLM-0086 | 104-214 | 385.4 | 212 | 170 | $1,809.00 | View |
| LS-CLM-0087 | 110-220 | 420.1 | 230 | 190 | $1,999.00 | View |
| LS-CLM-0088 | 120-250 | 515.6 | 260 | 216 | $2,249.00 | View |
| LS-CLM-0089 | 133-275 | 538.5 | 286 | 240 | $2,489.00 | View |
| LS-CLM-0090 | 135-270 | 561.4 | 286 | 240 | $2,489.00 | View |
| LS-CLM-0091 | 145-290 | 648.9 | 318 | 268 | $2,769.00 | View |
| LS-CLM-0092 | 155-310 | 639.9 | 376 | 300 | $3,089.00 | View |
