Collimated (telecentric) illumination, beam dia. 26-240 mm

Representative photo of this series

Collimated lights

Collimated (telecentric) illumination, beam dia. 26 mm, length 124.8 mm (LS-CLM-0066)

Model LS-CLM-0066

ColourRed, Green, Blue, White
VoltageDC 3V
Power1W/3W
TypeTelecentric

$489.00

Ships in 2-3 weeks

0.25 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Collimated illuminators designed for telecentric lens imaging; they can directly provide backlight or ortho illumination (spectral devices are required). Parallel illumination makes full use of the telecentric lens and helps improve system accuracy and depth of field.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CLM-0066
Compatible lens	LS-TCL-2432, LS-TCL-2497, LS-TCL-2567, LS-TCL-2678

Optics

Compatible telecentric lens	LS-TCL-2432, LS-TCL-2497, LS-TCL-2567, LS-TCL-2678
Working distance (mm)	23-46

Light

Color	R/G/B/W
Beam diameter (mm)	26

Electrical

Voltage	DC 3V
Power	1W/3W
Max current	350mA/1000mA
Electricity (current)	350mA/750mA

Mechanical

Length (mm)	124.8
Diameter (mm)	44
Shipping weight	0.25 kg

Downloads

Datasheet (PDF)LS-CLM-0066 · 2.2 MB

Features

Specially designed for telecentric lens imaging
Backlight directly, or ortho illumination (spectral devices are required)
Parallel illumination makes full use of the imaging potential of telecentric lenses and greatly improves system accuracy
Parallel illumination can optimise the depth of field far beyond the nominal value
Multiple wavelengths, 1W / 3W power selection, built-in brightness adjustment
Specially designed for telecentric lens imaging; directly realises backlight or ortho illumination (spectral devices are required)
Parallel illumination makes full use of the imaging potential of the telecentric lens and greatly improves system accuracy
Parallel illumination optimises the depth of field of the imaging system so that it is far beyond the nominal value
Multiple wavelengths, 1 W / 3 W power selection and built-in brightness adjustment device
Specially developed for backlights for objects inspected by telecentric lens
All light from the LS-CLM-S08 series light source collected by the telecentric lens goes into the camera to ensure high SNR
More accurate imaging compared with diffusing light sources by decreasing diffuse reflection on edges
Develops telecentricity and DoF for the telecentric lens

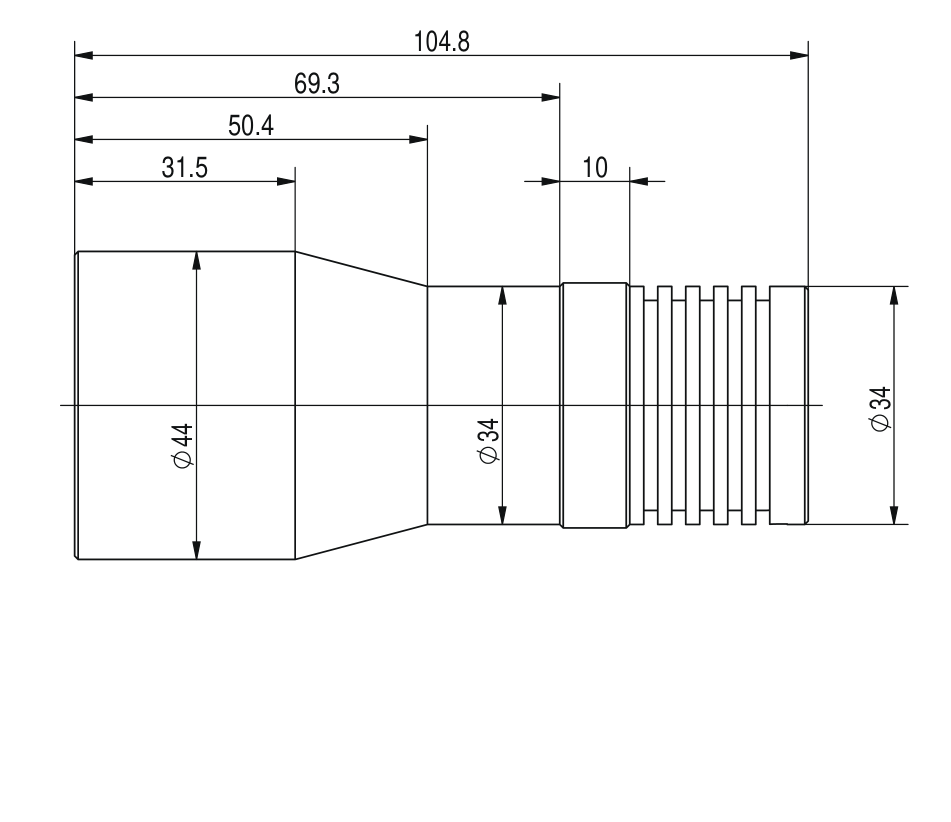

Brightness adjustable (rear ring, per drawings)
Specially developed for backlights which is for the objects inspected by telecentric lens
All light from LS-CLM-S08 series light source collected by telencentric lens goes into camera to ensure high SNR
More accurate imaging compared with diffusing light resource by decreasing diffuse reflection on edge
Develop Telecentricity and DoF for the telecentric lens.

Applications

Telecentric backlight / coaxial (ortho) illumination for telecentric lenses
Backlight or ortho illumination for telecentric lens imaging and measurement
Backlighting for telecentric lens measurement

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Collimated (telecentric) illumination, beam dia. 26-240 mm (LS-CLM-S08) series

See all 27 models
