Collimated lights

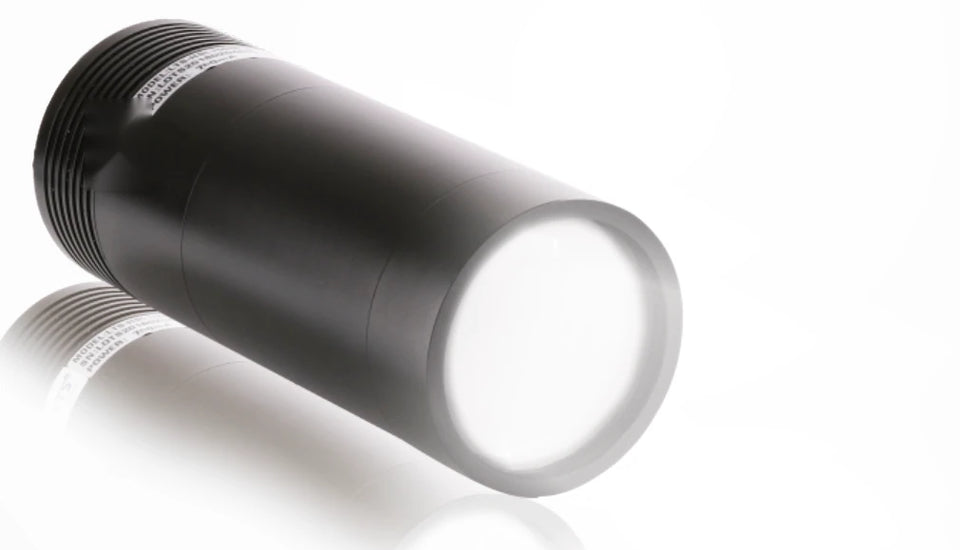

Collimated collector light (LS-CLM-S05)
- 5 models
- from $699.00
- Series LS-CLM-S05
The Collimated collector light (LS-CLM-S05) is a range of 5 collimated lights from LumaSpec Vision, from $699.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50 mm, 51 mm, 61 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- High luminance, concentrated light, good parallelism
- Suits long-distance inspection
- Durable steady structure, high heat dispersion performance
- Apply to long-distance inspection
Typical uses
- PCB printed character inspection
- Surface scratch inspection
- Edge contour inspection
- Mark position inspection
- Imaging example: dead pixel inspection on transparent glass (LS-CLM-0058)
- The surface scratch inspection
All 5 models in the Collimated collector light (LS-CLM-S05)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CLM-0056 | 50 mm | 150.5 | $699.00 | View | ||
| LS-CLM-0055 | 51 mm | 148 | $709.00 | View | ||
| LS-CLM-0057 | 3W | L150.5xOut dia. 58(mm) | $769.00 | View | ||
| LS-CLM-0058 | 5W | L150.5xOut dia. 58(mm) | $769.00 | View | ||
| LS-CLM-0054 | 61 mm | 3W | 110 | L110xOut dia. 70(mm) | $799.00 | View |
