Representative photo of this series
Collimated lights
51 mm Collimated collector light (LS-CLM-0055)
Model LS-CLM-0055
- ColourRed, Green, Blue, White
- Voltage24 V
- Adapted controllerConstant current controller

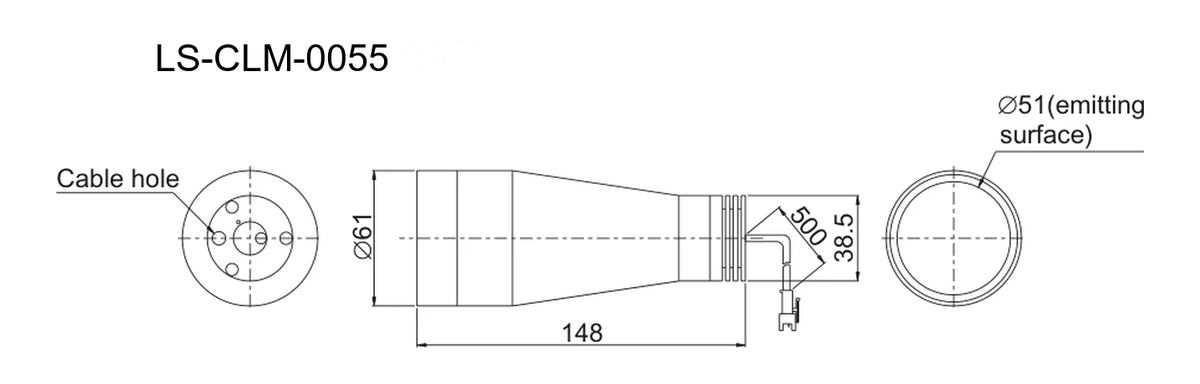

- Cable500 (drawings)
$709.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-luminance collimated light with concentrated light and good parallelism, for long-distance inspection; durable structure with high heat dissipation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CLM-0055 |
|---|---|
| Light spot (LS-CLM-0058) | WD 50: dia. 50, 7561 lx; WD 100: dia. 50, 7019 lx; WD 150: dia. 50, 6695 lx; WD 200: dia. 50, 6422 lx; WD 300: dia. 52, 5936 lx; WD 2000: dia. 170, 912 lx |
| Customizable | colour and colour temperature, cable length, installation method |
| Note | UV & IR light can be customized as required. |
| Outer dia. (mm) | 61 |
Interfaces and I/O
| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Emitting dia. (mm) | 51 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Adapted controller | Constant current controller |
|---|---|
| Power, R/G/B (W) | 3 |
| Power, W (W) | 3 |
| Voltage | 24 V |
Mechanical
| Weight (g) | 416 |
|---|---|
| Length (mm) | 148 |
Other models in the Collimated collector light (LS-CLM-S05) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CLM-0056 | 50 mm | $699.00 | Ships in 2-3 weeks | View |
| LS-CLM-0057 | Red, Blue, Green · L150.5xOut dia. 58(mm) | $769.00 | Ships in 2-3 weeks | View |
| LS-CLM-0058 | White · L150.5xOut dia. 58(mm) | $769.00 | Ships in 2-3 weeks | View |
| LS-CLM-0054 | 61 mm | $799.00 | Ships in 2-3 weeks | View |
