Collimated lights

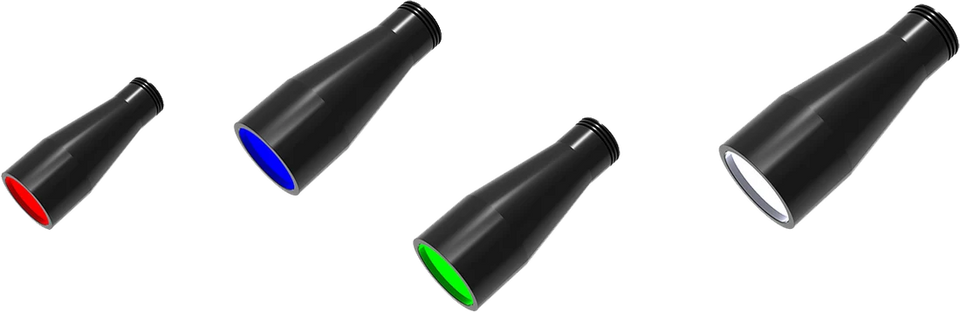

Collimated light (LS-CLM-S04)
- 5 models
- from $349.00
- Series LS-CLM-S04
The Collimated light (LS-CLM-S04) is a range of 5 collimated lights from LumaSpec Vision, from $349.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12 mm dia., 20 mm dia., 35 mm dia., 50 mm dia., 100 mm dia.
- Colour
- Red, Green, Blue, White
- Voltage
- 5 V
Features
- High-power LED chips produce parallel light through a condensing lens, suitable for applications needing parallelism or medium-to-long distance illumination.
Typical uses
- High-precision dimension inspection
- Medium to long-distance illumination
- Deep hole measurement of products
- Surface defect detection
All 5 models in the Collimated light (LS-CLM-S04)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CLM-0049 | 12 mm dia. | ø12 | 16X48.5 | 1 | $349.00 | View |
| LS-CLM-0050 | 20 mm dia. | ø20 | 30X88.5 | 1 | $429.00 | View |
| LS-CLM-0051 | 35 mm dia. | ø35 | 44X108 | 3 | $569.00 | View |
| LS-CLM-0052 | 50 mm dia. | ø50 | 61X148 | 3 | $699.00 | View |
| LS-CLM-0053 | 100 mm dia. | ø100 | 122X310 | 5 | $1,169.00 | View |
