Colour shown for illustration; the actual product may differ
Collimated lights
12 mm dia. Collimated Spot Light (LS-CLM-0049)
Model LS-CLM-0049
- ColourRed, Green, Blue, White
- Emitting areaø12
- Size16X48.5
- Voltage5 V
- Power1.5 W
$349.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12 mm dia. Collimated Spot Light. Collimated light in which high-power LED chips produce parallel light through a condensing lens, suitable for applications needing parallelism or medium-to-long distance illumination. Used for high-precision dimension inspection, deep-hole measurement and surface defect detection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CLM-0049 |
|---|
Light
| Emitting area (mm) | ø12 |
|---|---|
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 5 |
|---|---|
| Power R (W) | 1 |
| Power W/B/G (W) | 1.5 |
Mechanical
| Outer size ODxH (mm) | 16X48.5 |
|---|---|
| Shipping weight (estimated) | 0.20 kg |

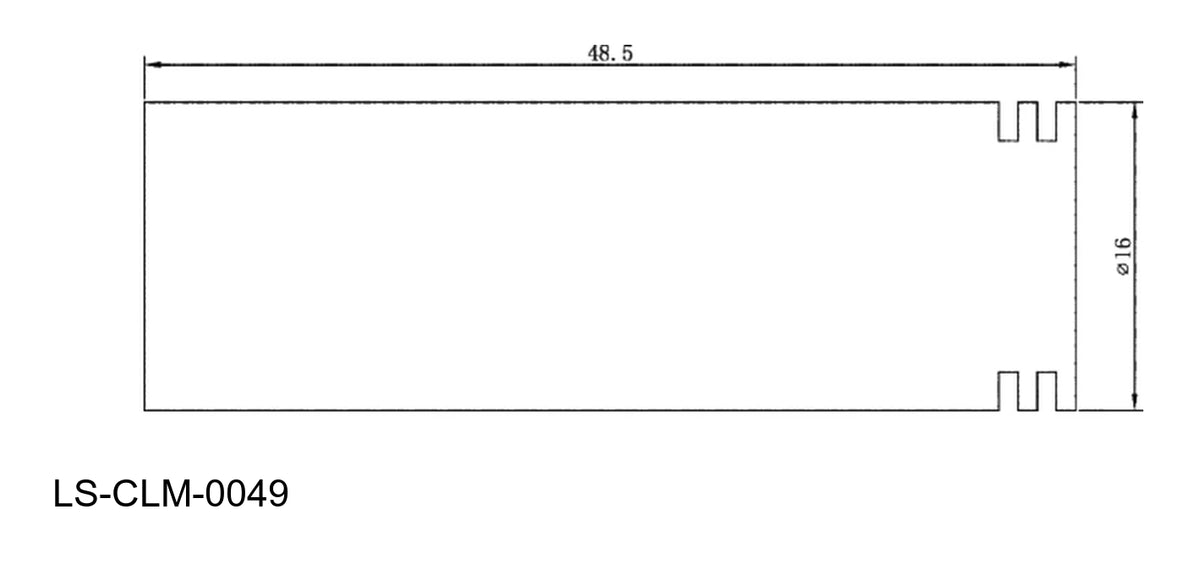

Mounting and drawing data
drawing: dia 16, length 48.5
Other models in the Collimated light (LS-CLM-S04) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CLM-0050 | 20 mm dia. | $429.00 | 18 in stock | View |
| LS-CLM-0051 | 35 mm dia. | $569.00 | 13 in stock | View |
| LS-CLM-0052 | 50 mm dia. | $699.00 | 14 in stock | View |
| LS-CLM-0053 | 100 mm dia. | $1,169.00 | 10 in stock | View |
