Home / Computers / Vision controllers / VC3000 series Vision Controller

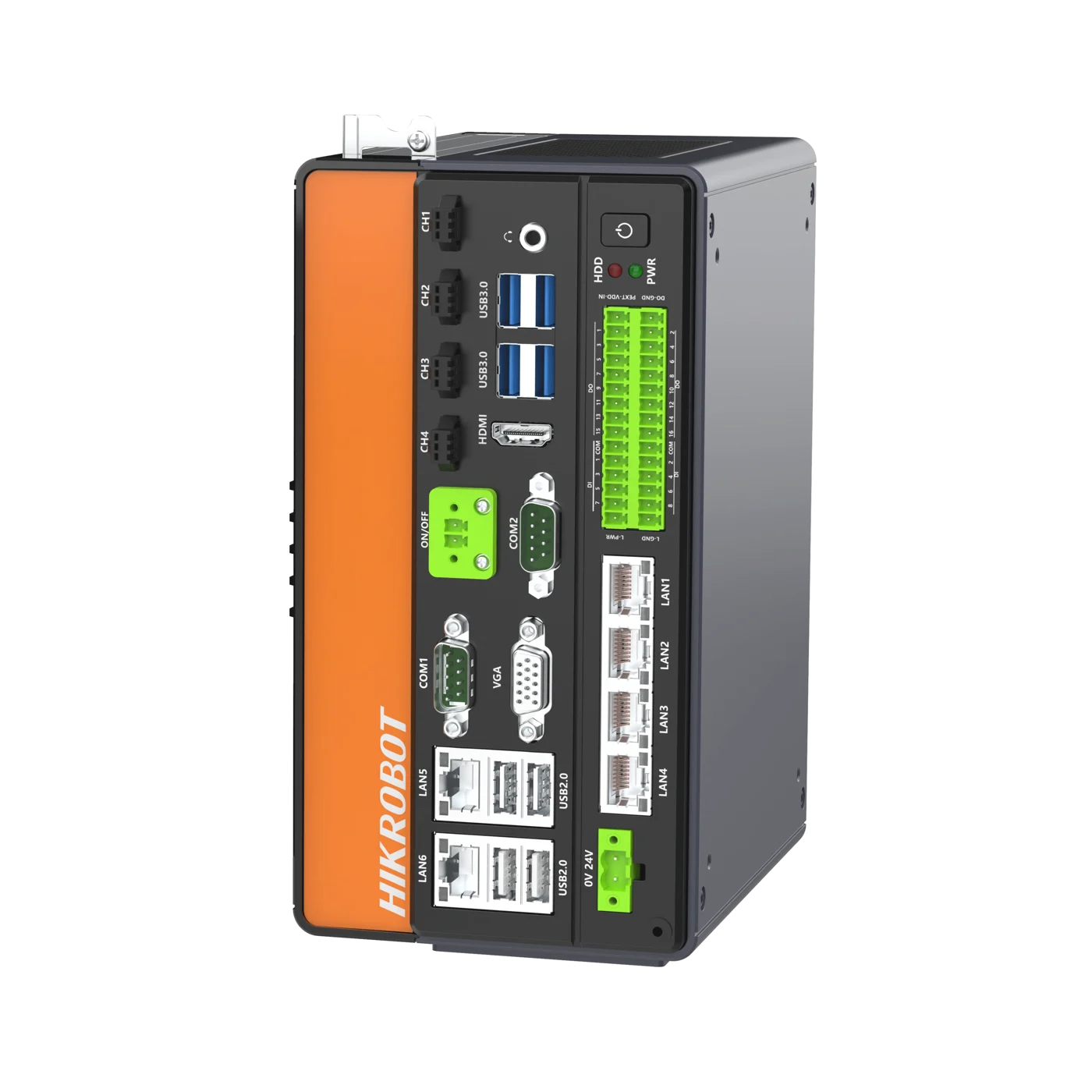

Hikrobot MV-VCC3502H-128G60 VCC3000 vision controller, I5-8500, 8GB+128G SSD+2T HDD, No PoE, PCIe expansion supported

Vision controllers

Hikrobot MV-VCC3502H-128G60 VCC3000 vision controller, I5-8500, 8GB+128G SSD+2T HDD, No PoE, PCIe expansion supported

Model MV-VCC3502H-128G60

Hikrobot MV-VCC3502H-128G60 VCC3000 vision controller, I5-8500, 8GB+128G SSD+2T HDD, No PoE, PCIe expansion supported. Desktop-class 8th-gen Intel CPU for powerful computing performance Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance

Price on request
3.04 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - MV-VCC3502H-128G60User manual (PDF, Chinese) - MV-VCC3502H-128G60CAD: 3D STEP + 2D DXF (ZIP) - MV-VCC3502H-128G60

Features

  • Desktop-class 8th-gen Intel CPU for powerful computing performance
  • Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance
  • GPIO support; outputs switchable between NPN and PNP
  • Intel GigE ports for fast, stable image transmission
  • PCIe 3.0 x16 interface
  • Optional built-in USB port for easy on-site deployment and maintenance

Specifications

ModelMV-VCC3502H-128G60
BrandHikrobot
CPUIntel® CoreTM i5-8500
Memory8 GB
Storage128 GB SSD + 2 TB HDD, 1× mSATA expansion slot
GPUIntel® HD Graphics 630
Operating systemWindows 10 64-bit, Not activated
Video outputHDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz
Digital I/O8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable)
Network interface6× Gigabit Ethernet ports
USB InterfaceUSB 2.0 × 4; USB 3.0 × 4; Built-in USB 2.0 × 1
Serial Port2× full-function RS-232, RS-485/RS-422 switchable
Light interface4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 80 W
Extended interface1× PCIe 3.0 x16 slot
Power supply24 VDC
Power consumption95 W
Dimension161.4 mm × 208.5 mm × 105.5 mm
WeightApprox. 2.1 kg
Temperature0 ~ 50 °C
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC
Shipping weight (estimated)3.04 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the VC3000 series Vision Controller series

ModelSizePriceAvailability
MV-VCC3304X-128G6012th-I3, 16GB+128G SSD Price on request 4 in stockView
MV-VCC3501X-128G6012th-I5, 8GB+128G SSD Price on request 2 in stockView
MV-VCC3503X-128G6012th-I5, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VCC3504X-128G6012th-I5, 16GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VCC3502X-128G6012th-I5, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VCC3703X-128G6012th-I7, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VCC3704X-128G6012th-I7, 16GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VCC3702X-128G6012th-I7, 8GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VCC3701X-128G6012th-I7, 8GB+128G SSD Price on request 2 in stockView
MV-VCC3102H-128G60G4900, 8GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VCC3302H-128G60I3-8100, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VCC3303H-128G60I3-8100, 8GB+128G SSD Price on request 2 in stockView
MV-VCC3503H-128G60I5-8500, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VCC3702H-128G60I7-8700, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VCC3703H-128G60I7-8700, 8GB+128G SSD+2T HDD Price on request 2 in stockView
MV-VC3101X-128G60G6900, 8GB+128G SSD Price on request 3 in stockView
MV-VC3102X-128G60G6900, 8GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VC3201X-128G60G7400, 8GB+128G SSD Price on request 5 in stockView
MV-VC3202X-128G60G7400, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VC3301X-128G6012th-I3, 8GB+128G SSD Price on request 3 in stockView
MV-VC3302X-128G6012th-I3, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3303X-128G6012th-I3, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VC3304X-128G6012th-I3, 16GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3501X-128G6012th-I5, 8GB+128G SSD Price on request 3 in stockView

See all 113 models in the VC3000 series Vision Controller series
