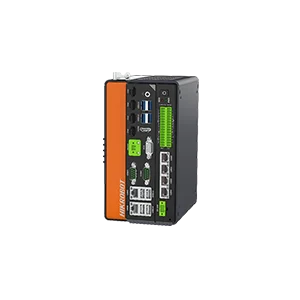

Hikrobot MV-VC3304X-128G60 VC3000X Vision Controller, 12th-I3, 16GB+128G SSD+2T HDD, Unsupported POE&PCI-E

Vision controllers

Hikrobot MV-VC3304X-128G60 VC3000X Vision Controller, 12th-I3, 16GB+128G SSD+2T HDD, Unsupported POE&PCI-E

Model MV-VC3304X-128G60

Hikrobot MV-VC3304X-128G60 VC3000X Vision Controller, 12th-I3, 16GB+128G SSD+2T HDD, Unsupported POE&PCI-E. Adopts 12th generation Intel® CPU to offer strong performance. Provides extended slot to connect with image frame grabbers.

Price on request
3.04 kg shipping weight · Ships in 2-3 weeks
Request a quote
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - MV-VC3304X-128G60User manual (PDF) - MV-VC3304X-128G60CAD: 3D STEP + 2D DXF (ZIP) - MV-VC3304X-128G60

Features

  • Adopts 12th generation Intel® CPU to offer strong performance.
  • Provides extended slot to connect with image frame grabbers.
  • Supports 24-channel GPIO and NPN/PNP switching for output.
  • Adopts GigE interfaces for stable data transmission.

Specifications

ModelMV-VC3304X-128G60
BrandHikrobot
CPUIntel®@ Core 12th i3@ LGA1700 type CPU.Max.65W TDP
Memory16 GB
Storage128 GB SSD + 2 TB HDD
GPUIntel® HD Graphics 730
Operating systemUnactivated 64-bit Windows 10
Video outputHDMI interface × 1, VGA interface × 1; Supports independent display outputs at the same time; Max. resolution 1920 × 1080 @ 60 Hz (HDMI interface); Max. resolution 1920 × 1440 @ 60 Hz (VGA interface)
Digital I/OOpto-isolated input × 8; Opto-isolated output × 16 (supports NPN/PNP switching)
Network interfaceGigE interface × 6, including Intel® GigE interface × 2, Netswift GigE interface × 4
USB interfaceUSB 2.0 × 4; USB 3.0 × 4
Serial portRS-232 × 2, supports switching to RS-485 and RS-422
Light interface24 VDC constant voltage × 4; (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.)
Power supply24 VDC
Power consumptionTyp. 144 W
Dimension161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2")
WeightApprox. 2.1 kg (4.6 lb.)
Temperature0 °C to 50 °C (32 °F to 122 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC
Shipping weight (estimated)3.04 kg
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the VC3000 series Vision Controller series

ModelSizePriceAvailability
MV-VC3101X-128G60G6900, 8GB+128G SSD Price on request 3 in stockView
MV-VC3102X-128G60G6900, 8GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VC3201X-128G60G7400, 8GB+128G SSD Price on request 5 in stockView
MV-VC3202X-128G60G7400, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VC3301X-128G6012th-I3, 8GB+128G SSD Price on request 3 in stockView
MV-VC3302X-128G6012th-I3, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3303X-128G6012th-I3, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VC3501X-128G6012th-I5, 8GB+128G SSD Price on request 3 in stockView
MV-VC3502X-128G6012th-I5, 8GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VC3503X-128G6012th-I5, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3504X-128G6012th-I5, 16GB+128G SSD+2T HDD Price on request 2 in stockView
MV-VC3701X-128G6012th-I7 Price on request 5 in stockView
MV-VC3702X-128G6012th-I7, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VC3703X-128G6012th-I7, 8GB+128G SSD+2T HDD Price on request 2 in stockView
MV-VC3704X-128G6012th-I7, 16GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VC3101H-128G60G4900 Price on request 5 in stockView
MV-VC3102H-128G60G4900, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3201H-128G60G5400 Price on request 2 in stockView
MV-VC3202H-128G60G5400 Price on request 3 in stockView
MV-VC3301H-128G60I3-8100 Price on request 5 in stockView
MV-VC3302H-128G60I3-8100 Price on request 2 in stockView
MV-VC3303H-128G60I3-8100 Price on request 2 in stockView
MV-VC3304H-128G60I3-8100 Price on request 2 in stockView
MV-VC3501H-128G60I5-8500 Price on request 5 in stockView

See all 32 models in the VC3000 series Vision Controller series
