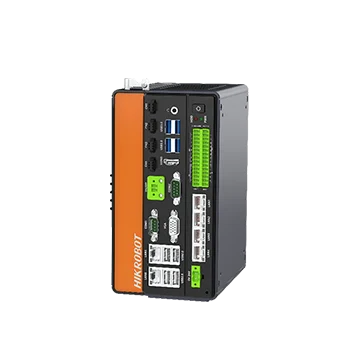

Hikrobot MV-VC3202H-128G60 VC3000H Vision Controller, G5400, 8GB+128GSSD+2THDD, Unsupported POE, PCI-E
Model MV-VC3202H-128G60
Hikrobot MV-VC3202H-128G60 VC3000H Vision Controller, G5400, 8GB+128GSSD+2THDD, Unsupported POE, PCI-E. Adopts 8th generation Intel® CPU to offer strong performance. Provides extended slot to connect with image frame grabbers.
Features
- Adopts 8th generation Intel® CPU to offer strong performance.
- Provides extended slot to connect with image frame grabbers.
- Supports 24-channel GPIO and NPN/PNP switching for output.
- Adopts GigE interfaces for stable data transmission.
- Supports PCIe 3.0 ×16 interface.
- Built-in USB interface for on-site maintenance is optional.
Specifications
| Model | MV-VC3202H-128G60 |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® PentiumTM G5400 |
| Memory | 8 GB |
| Storage | 128 GB SSD + 2 TB HDD, mSATA interface × 1 |
| GPU | Intel® HD Graphics 610 |
| Operating system | Unactivated 64-bit Windows 10 |
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display outputs at the same time; Max. resolution 1920 × 1080 @ 60 Hz |
| Digital I/O | Opto-isolated input × 8; Opto-isolated output × 16 (supports NPN/PNP switching) |
| Network interface | GigE interface × 6 |
| USB interface | USB 2.0 × 4; USB 3.0 × 4; Built-in USB 2.0 × 1 |
| Serial port | RS-232 × 2, supports switching to RS-485 and RS-422 |
| Light interface | 24 VDC constant voltage × 4; (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.) |
| Extended interface | PCIe 3.0 ×16 ( × 1) |
| Power supply | 24 VDC |
| Power consumption | Typ. 95 W |
| Dimension | 161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2") |
| Weight | Approx. 2.1 kg (4.6 lb.) |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 3.04 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
