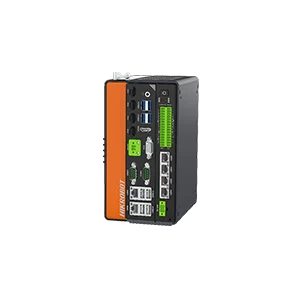

Hikrobot MV-VC3501X-128G60 VC3000X Vision Controller, 12th-I5, 8GB+128G SSD, Unsupported POE&PCI-E

Name: Hikrobot MV-VC3501X-128G60 VC3000X Vision Controller, 12th-I5, 8GB+128G SSD, Unsupported POE&PCI-E
Brand: Hikrobot
SKU: MV-VC3501X-128G60

Model MV-VC3501X-128G60

Hikrobot MV-VC3501X-128G60 VC3000X Vision Controller, 12th-I5, 8GB+128G SSD, Unsupported POE&PCI-E. Adopts 12th generation Intel® CPU to offer strong performance. Provides extended slot to connect with image frame grabbers.

Datasheet (PDF) - MV-VC3501X-128G60 User manual (PDF) - MV-VC3501X-128G60 CAD: 3D STEP + 2D DXF (ZIP) - MV-VC3501X-128G60

Features

Adopts 12th generation Intel® CPU to offer strong performance.
Provides extended slot to connect with image frame grabbers.
Supports 24-channel GPIO and NPN/PNP switching for output.
Adopts GigE interfaces for stable data transmission.

Specifications

Model	MV-VC3501X-128G60
Brand	Hikrobot
CPU	Intel® CoreTM i5-12400
Memory	8 GB
Storage	128 GB SSD
GPU	Intel® HD Graphics 730
Operating system	Unactivated Windows 10
Video output	HDMI interface × 1, VGA interface × 1; Supports independent display outputs at the same time; Max. resolution 1920 × 1080 @ 60 Hz (HDMI interface); Max. resolution 1920 × 1440 @ 60 Hz (VGA interface)
Digital I/O	Opto-isolated input × 8; Opto-isolated output × 16 (supports NPN/PNP switching)
Network interface	GigE interface × 6, including Intel® GigE interface × 2, Netswift GigE interface × 4
USB interface	USB 2.0 × 4; USB 3.0 × 4
Serial port	RS-232 × 2, supports switching to RS-485 and RS-422
Light interface	24 VDC constant voltage × 4; (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.)
Power supply	24 VDC
Power consumption	Typ. 240 W
Dimension	161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2")
Weight	Approx. 2.1 kg (4.6 lb.)
Temperature	0 °C to 50 °C (32 °F to 122 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC
Shipping weight (estimated)	3.04 kg

Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers Lenses Selection guide

Other sizes in the VC3000 series Vision Controller series

Model	Size	Price	Availability
MV-VC3101X-128G60	G6900, 8GB+128G SSD	Price on request	3 in stock	View
MV-VC3102X-128G60	G6900, 8GB+128G SSD+2T HDD	Price on request	3 in stock	View
MV-VC3201X-128G60	G7400, 8GB+128G SSD	Price on request	5 in stock	View
MV-VC3202X-128G60	G7400, 8GB+128G SSD+2T HDD	Price on request	4 in stock	View
MV-VC3301X-128G60	12th-I3, 8GB+128G SSD	Price on request	3 in stock	View
MV-VC3302X-128G60	12th-I3, 8GB+128G SSD+2T HDD	Price on request	5 in stock	View
MV-VC3303X-128G60	12th-I3, 8GB+128G SSD+2T HDD	Price on request	4 in stock	View
MV-VC3304X-128G60	12th-I3, 16GB+128G SSD+2T HDD	Price on request	5 in stock	View
MV-VC3502X-128G60	12th-I5, 8GB+128G SSD+2T HDD	Price on request	3 in stock	View
MV-VC3503X-128G60	12th-I5, 8GB+128G SSD+2T HDD	Price on request	5 in stock	View
MV-VC3504X-128G60	12th-I5, 16GB+128G SSD+2T HDD	Price on request	2 in stock	View
MV-VC3701X-128G60	12th-I7	Price on request	5 in stock	View
MV-VC3702X-128G60	12th-I7, 8GB+128G SSD+2T HDD	Price on request	4 in stock	View
MV-VC3703X-128G60	12th-I7, 8GB+128G SSD+2T HDD	Price on request	2 in stock	View
MV-VC3704X-128G60	12th-I7, 16GB+128G SSD+2T HDD	Price on request	4 in stock	View
MV-VC3101H-128G60	G4900	Price on request	5 in stock	View
MV-VC3102H-128G60	G4900, 8GB+128G SSD+2T HDD	Price on request	5 in stock	View
MV-VC3201H-128G60	G5400	Price on request	2 in stock	View
MV-VC3202H-128G60	G5400	Price on request	3 in stock	View
MV-VC3301H-128G60	I3-8100	Price on request	5 in stock	View
MV-VC3302H-128G60	I3-8100	Price on request	2 in stock	View
MV-VC3303H-128G60	I3-8100	Price on request	2 in stock	View
MV-VC3304H-128G60	I3-8100	Price on request	2 in stock	View
MV-VC3501H-128G60	I5-8500	Price on request	5 in stock	View

See all 32 models in the VC3000 series Vision Controller series
