Area scan cameras

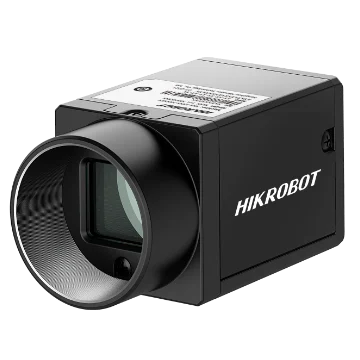

Hikrobot MV-NT002-60GN 2 MP GigE area scan camera, Mono
Model MV-NT002-60GN
Hikrobot MV-NT002-60GN 2 MP GigE area scan camera, Mono. Low-power platform with stable performance ISP functions including wide dynamic range, noise reduction and sharpening
Features
- Low-power platform with stable performance
- ISP functions including wide dynamic range, noise reduction and sharpening
- Software trigger, hardware trigger and free-run modes
- Optional band-pass filter for infrared fill-light applications
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms
Specifications
| Model | MV-NT002-60GN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.9 μm × 2.9 μm |
| Sensor size | 1/2.8'' |
| Resolution | 1920 × 1080 |
| Max. frame rate | 56 fps @1920 × 1080 Mono8 |
| Dynamic range | 74 dB; 90 dB @ WDR mode |
| SNR | 45.6 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | 64 μs ~ 130 ms |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Not supported |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 2.4 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | GigE Vision 2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
