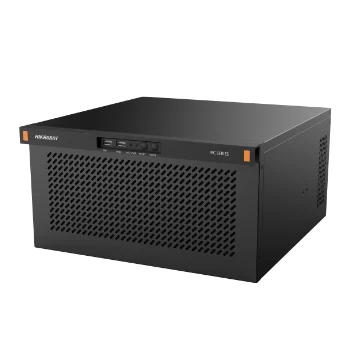

Hikrobot MV-IPC-H4C5Q-32G-256G2T-262 4U wall-mount industrial PC, Q670, i5-12400, 2*16G, 256G+2T, 650W

Name: Hikrobot MV-IPC-H4C5Q-32G-256G2T-262 4U wall-mount industrial PC, Q670, i5-12400, 2*16G, 256G+2T, 650W
Brand: Hikrobot
SKU: MV-IPC-H4C5Q-32G-256G2T-262

Model MV-IPC-H4C5Q-32G-256G2T-262

Hikrobot MV-IPC-H4C5Q-32G-256G2T-262 4U wall-mount industrial PC, Q670, i5-12400, 2*16G, 256G+2T, 650W. Supports Intel® Gen 12/13/14 Core™ i3/i5/i7/i9, Pentium® and Celeron® CPUs 4× DDR4 non-ECC memory slots, expandable to 128 GB; up to 3200 MHz per module

Datasheet (PDF, Chinese) - MV-IPC-H4C5Q-32G-256G2T-262 User manual (PDF, Chinese) - MV-IPC-H4C5Q-32G-256G2T-262 CAD: 3D STEP + 2D DXF (ZIP) - MV-IPC-H4C5Q-32G-256G2T-262

Features

Supports Intel® Gen 12/13/14 Core™ i3/i5/i7/i9, Pentium® and Celeron® CPUs
4× DDR4 non-ECC memory slots, expandable to 128 GB; up to 3200 MHz per module
Expansion slots: 2 × PCIe x16, 4 × PCIe x4, 1 × PCI
2× Intel GigE ports and 6× USB3.0 ports
DVI + VGA + HDMI display outputs with independent triple-display support

Specifications

Model	MV-IPC-H4C5Q-32G-256G2T-262
Brand	Hikrobot
CPU	Supports LGA1700 Intel® CoreTM Gen 12/13/14, i3/i5/i7/i9 and Pentium®, Celeron® CPU, TDP:125W
Chip	Intel® Q670 chipset, ATX motherboard
Memory	4 × DDR4 3200MHz non-ECC U-DIMM memory slots, 32 GB per module, Up to 128 GB
Storage	4 × 7-pin SATA3.0, 1 × M.2 interface, auto-switching Nvme/SATA, 2242/2280; RAID 0 supported, 1, 5, 10
Operating system	Windows 10/11, Linux
Network interface	2× Intel Ethernet ports (I226 + I219)
USB Interface	6× USB 3.0 ports; Internal 2 × USB 3.0 (pin header), 4 × USB 2.0 (pin header)1, 1× onboard USB 2.0 ports for dongle
Serial Port	1 × RS-232; Internal 1 × RS-232/422/485 (pin header), 1 × RS-232/485 (pin header), 3 × RS-232 (pin header)
Extended interface	2 × PCIe x16 (PCIe 4.0, x8 signal), 3× PCIe x4 (PCIe 4.0), 1× PCIe x4 (PCIe 3.0), 1 × PCI (32-bit) expansion slots
Display interface	Independent triple display supported (DVI, VGA, HDMI); 1 × DVI, up to 1920 × 1200@60Hz; 1 × VGA, up to 1920 × 1200@60Hz; 1 × HDMI, up to 4096 × 2160@30Hz
Audio interface	MIC-In, Line-In, Line-out
GPIO	8-bit GPIO
Power supply	100 ~ 240V AC
Max. power consumption	650W
Installation method	Wall-mount and desktop
Dimension	351mm × 331mm × 174mm(LWH)
Weight	Net weight approx. 10.3 kg
Temperature	Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C
Humidity	20% RH to 95% RH (no condensation)
Shipping weight (estimated)	14.52 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the 4U Wall-Mount Industrial PC (12th Gen) series

Model	Size	Price	Availability
MV-IPC-H4C5W-16G-256G2T-2A1	i5-12400	Price on request	3 in stock	View
MV-IPC-H4C5W-32G-256G2T-2A3	i5-12400	Price on request	3 in stock	View
MV-IPC-H4C7W-32G-256G2T-2A3	i7-12700	Price on request	2 in stock	View
MV-IPC-H4C5H-16G-256G2T-241	i5-12400	Price on request	4 in stock	View
MV-IPC-H4C7H-32G-256G2T-241	i7-12700	Price on request	5 in stock	View
MV-IPC-H4A7W-32G-256G2T-2A3	i7-10700	Price on request	3 in stock	View
MV-IPC-H4A9W-32G-256G2T-2A3	i9-10900	Price on request	5 in stock	View
MV-IPC-H4A9KW-32G-256G2T-2A3	i9-10900K	Price on request	4 in stock	View
MV-IPC-H4C7Q-32G-256G2T-262	i7-12700	Price on request	2 in stock	View
MV-IPC-H4B5W-32G-256G2T-2A2	i5-11400	Price on request	2 in stock	View
MV-IPC-H4B7W-32G-256G2T-2A2	i7-11700	Price on request	2 in stock	View
MV-IPC-H4B9W-32G-256G2T-2A3	i9-11900	Price on request	4 in stock	View
MV-IPC-H487H-8G-256G1T-240	i7-8700	Price on request	5 in stock	View
MV-IPC-H4C7W-32G-256G2T-2A1	i7-12700	Price on request	5 in stock	View
MV-IPC-H485H-8G-256G1T-240	i5-8500	Price on request	3 in stock	View
