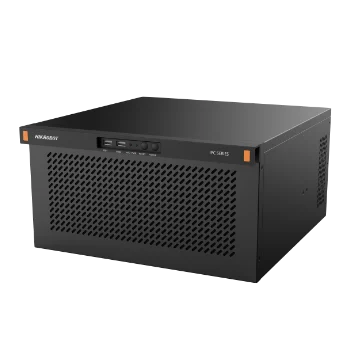

Hikrobot MV-IPC-H4A7W-32G-256G2T-2A3 4U wall-mount industrial PC, W580, i7-10700, 2*16G, 256G+2T, 850W

Name: Hikrobot MV-IPC-H4A7W-32G-256G2T-2A3 4U wall-mount industrial PC, W580, i7-10700, 2*16G, 256G+2T, 850W
Brand: Hikrobot
SKU: MV-IPC-H4A7W-32G-256G2T-2A3

Model MV-IPC-H4A7W-32G-256G2T-2A3

Hikrobot MV-IPC-H4A7W-32G-256G2T-2A3 4U wall-mount industrial PC, W580, i7-10700, 2*16G, 256G+2T, 850W. Supports Intel® Gen 10/11 Xeon W / Core™ i3/i5/i7/i9/G-series CPUs 4 DDR4 memory slots, expandable to 128 GB, up to 3200 MHz per module

Datasheet (PDF, Chinese) - MV-IPC-H4A7W-32G-256G2T-2A3 User manual (PDF, Chinese) - MV-IPC-H4A7W-32G-256G2T-2A3 CAD: 3D STEP + 2D DXF (ZIP) - MV-IPC-H4A7W-32G-256G2T-2A3

Features

Supports Intel® Gen 10/11 Xeon W / Core™ i3/i5/i7/i9/G-series CPUs
4 DDR4 memory slots, expandable to 128 GB, up to 3200 MHz per module
Expansion slots: 2 × PCIe x16 (2 × x8 signal when both slots are populated), 4 × PCIe x4 (one at x1 signal), 1 × PCI (32-bit)
2 Intel Ethernet ports; 10 USB3.0 ports, 2 USB2.0 (pin header), 2 USB2.0 internal ports
2 × DP + HDMI display outputs with independent triple displays

Specifications

Model	MV-IPC-H4A7W-32G-256G2T-2A3
Brand	Hikrobot
CPU	Supports LGA1200 Intel® Gen 10/11 Xeon W/Core™ i3/i5/i7/i9/G series CPUs, TDP:125W
Chip	Intel® W580 chipset, ATX motherboard
Memory	4× DDR4 ECC/non-ECC memory slots supported, 32 GB per module, Up to 128 GB
Storage	1 × M.2 SATA/NVMe 2242/2280 slot (NVMe x4 on Gen 11 CPUs only), 4× 7-pin SATA 3.0 (SATA1 has no signal when a SATA SSD is installed in M.2); RAID 0 supported, 1, 5
Operating system	Windows 10/11, Linux
Network interface	2 Intel Ethernet ports (I226+I219)
USB Interface	10× USB 3.0 ports1; Built-in 2× USB 2.0 (pin header), 2× onboard USB 2.0 ports for dongle
Serial Port	Onboard 1× RS-232/422/485 port; Built-in 4× RS-232 (pin header), 1× RS-232/422/485 (pin header)
Extended interface	2× PCIe x16 (PCIe 3.0, 1× x16 signal or 2× x8 signals), ; 4× PCIe x4 (PCIe 3.0, one of which is x1 signal), 1× PCI (32-bit)
Display interface	Intel HD Graphics; Independent triple display supported (1× HDMI, 2*DP); 1× HDMI, up to 3840×2160 @ 60Hz; 2× DP, up to 3840×2160 @ 60Hz
Audio interface	MIC-In, Line-in, Line-out
GPIO	16-bit GPIO
Power supply	100 ~ 240V AC
Max. power consumption	850W
Installation method	Wall-mount and desktop
Dimension	351mm × 331mm × 174mm(LWH)
Weight	Net weight approx. 10.3 kg
Temperature	Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C
Humidity	20% RH to 95% RH (no condensation)
Shipping weight (estimated)	14.52 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide
