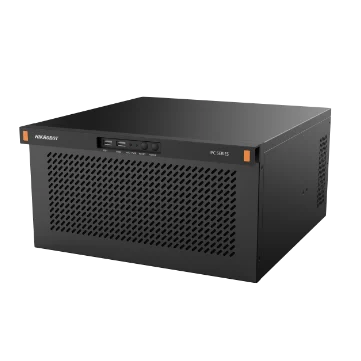

Hikrobot MV-IPC-H4C5H-16G-256G2T-241 4U wall-mount industrial PC, H610, i5-12400, 2*8G, 256G+2T, 500W
Model MV-IPC-H4C5H-16G-256G2T-241
Hikrobot MV-IPC-H4C5H-16G-256G2T-241 4U wall-mount industrial PC, H610, i5-12400, 2*8G, 256G+2T, 500W. Supports Intel® Gen 12/13/14 Core™ i3/i5/i7/i9, Pentium® and Celeron® CPUs 2 DDR4 U-DIMM memory slots, expandable to 64 GB
Datasheet (PDF, Chinese) - MV-IPC-H4C5H-16G-256G2T-241User manual (PDF, Chinese) - MV-IPC-H4C5H-16G-256G2T-241CAD: 3D STEP + 2D DXF (ZIP) - MV-IPC-H4C5H-16G-256G2T-241
Features
- Supports Intel® Gen 12/13/14 Core™ i3/i5/i7/i9, Pentium® and Celeron® CPUs
- 2 DDR4 U-DIMM memory slots, expandable to 64 GB
- Expansion slots: 1× PCIe x16, 2× PCIe x4 (x2 signal), 4× PCI (32-bit)
- 2 Intel Ethernet ports, 4 USB3.0 ports, 4 USB2.0 ports
- VGA + HDMI + DP display outputs with independent triple-display support
Specifications
| Model | MV-IPC-H4C5H-16G-256G2T-241 |
|---|---|
| Brand | Hikrobot |
| CPU | Supports LGA1700 Intel® CoreTM Gen 12/13/14, i3/i5/i7/i9 and Pentium®, Celeron® CPU; CPU TDP up to 65 W |
| Chip | Intel® H610 chipset, ATX motherboard |
| Memory | 2 × DDR4 U-DIMM memory slots, 32 GB per module, Up to 64 GB |
| Storage | 4 × 7-pin SATA3.0, 1 × M.2 NVMe 2242/2280 slot, RAID not supported |
| Operating system | Windows 10/11, Linux |
| Network interface | 2 Intel Ethernet ports (I226+ I219) |
| USB Interface | 4× USB 3.0 ports, 4× USB 2.0 ports; Internal 2 × USB 2.0 signals (pin header)1, 1 × onboard USB 2.0 port for license dongle (either this or the pin header, unavailable by default) |
| Serial Port | Onboard 1 × RS-232/422/485, ; 1 × internal RS-232/422/485 headers, 4 × RS-232 headers |
| Extended interface | 1× PCIe x16 (PCIe 5.0); 2× PCIe x4 (PCIe 3.0, x2 signal); 4 × standard PCI slots (32-bit) |
| Display interface | Independent triple display supported; 1 × VGA, Up to 1920 × 1080@60Hz; 1 × HDMI, Up to 3840 × 2160@60Hz; 1 × DP, Up to 3840 × 2160@60Hz |
| Audio interface | MIC-In, Line-in, Line-out |
| GPIO | 8-bit GPIO |
| Power supply | 100 ~ 240V AC |
| Max. power consumption | 500W |
| Installation method | Wall-mount and desktop |
| Dimension | 351mm × 331mm × 174mm(L*W*H) |
| Weight | Net weight approx. 10.3 kg |
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 14.52 kg |
