Handheld code readers

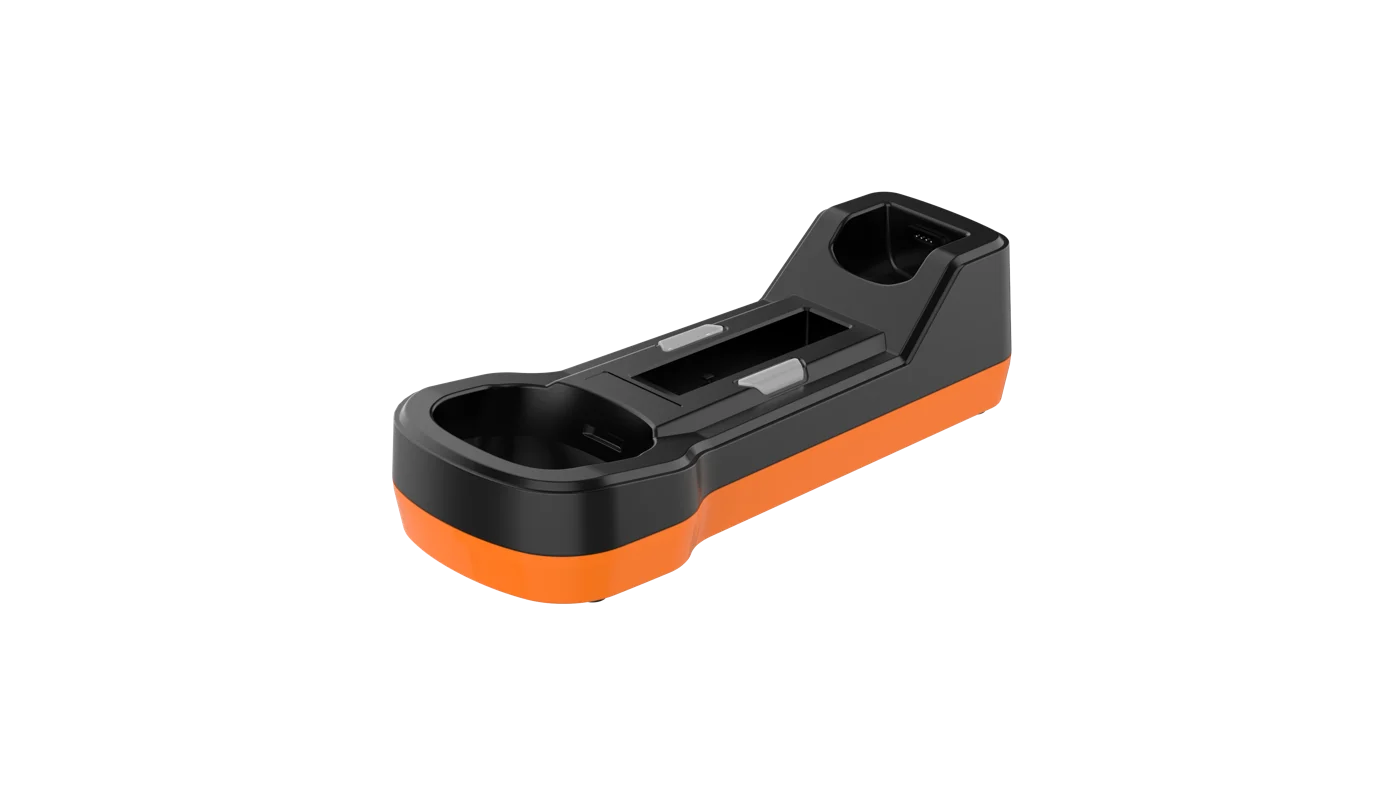

Hikrobot MV-IDH7000B/SBASE/L H70 series GigE smart handheld code reader base
Model MV-IDH7000B/SBASE/L
Hikrobot MV-IDH7000B/SBASE/L H70 series GigE smart handheld code reader base. Bluetooth 5.0 wireless for more efficient, lightweight operation Flexible charging: charge the battery or the device
Datasheet (PDF, Chinese) - MV-IDH7000B/SBASE/LUser manual (PDF, Chinese) - MV-IDH7000B/SBASE/LCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH7000B/SBASE/L
Features
- Bluetooth 5.0 wireless for more efficient, lightweight operation
- Flexible charging: charge the battery or the device
- IDMVS access for parameter configuration and device management
- Supports SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, FINS and Melsec/SLMP protocols
Specifications
| Model | MV-IDH7000B/SBASE/L |
|---|---|
| Brand | Hikrobot |
| Communication protocol | SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, FINS, Melsec/SLMP |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Power supply | 12 VDC |
| Current consumption | 0.7 A (max.), 0.06 A (during standby) |
| Charging time | 4 h |
| Dimension | 248.4 mm × 106.3mm × 69.4 mm |
| Weight | Approx. 380 g |
| Ingress protection | IP40 |
| Humidity | 20% RH to 95% RH (no condensation) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Shipping weight (estimated) | 0.63 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the IDH7000 Series Handheld Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-MFWO8500P/L | 1 MP | Price on request | 3 in stock | View |
| MV-MFWO8500P/U | 1 MP | Price on request | 2 in stock | View |
| MV-IDH7000B/10SR/07RN/LS | 1 MP | Price on request | 3 in stock | View |
| MV-IDH7000B/10NR/07RN/LS | 1 MP | Price on request | 2 in stock | View |
| MV-IDH7000B/10HHD/07RN/LS | 1 MP | Price on request | 4 in stock | View |
| MV-IDH7000P/10NR/07RN/L | 1 MP | Price on request | 3 in stock | View |
| MV-IDH7000P/10SR/07RN/LP | 1 MP | Price on request | 5 in stock | View |
| MV-IDH7000P/10NR/07RN/LP | 1 MP | Price on request | 5 in stock | View |
| MV-IDH7000B/10ER/12RN/LS | 1 MP | Price on request | 4 in stock | View |
| MV-IDH7000P/10ER/12RN/L | 1 MP | Price on request | 5 in stock | View |
| KM-DMH7B/10SR/07RN/LS | 1 MP | Price on request | 4 in stock | View |
| HIK-S850BY-025RB | 1 MP | Price on request | 4 in stock | View |
| IA-IDH9010-08-DNP | 1.4 MP | Price on request | 4 in stock | View |
| HKJZH8001070N-U | 1 MP | Price on request | 5 in stock | View |
| HY-IDH717BN-L | 1 MP | Price on request | 3 in stock | View |
| HH-JPMV7632-DP/U | 1 MP | Price on request | 2 in stock | View |
| MV-8650/10HHD/12RN/US | 1 MP | Price on request | 2 in stock | View |
| HK-EJH70B /10NR/07RN/US | 1 MP | Price on request | 2 in stock | View |
| HK-EJH70/05S/U | 1 MP | Price on request | 4 in stock | View |
| MV-IDHBG013D/10NR/07RN/US | 1 MP | Price on request | 5 in stock | View |
| MV-IDH7000B/10SR/07RN | 1 MP | Price on request | 2 in stock | View |
| MV-IDH7000B/10NR/07RN | 1 MP | Price on request | 5 in stock | View |
| MV-IDH7000P/10SR/07RN/L | 1 MP | Price on request | 5 in stock | View |
| MV-IDH7050B/10SR/07RN/US | 1 MP | Price on request | 2 in stock | View |
See all 34 models in the IDH7000 Series Handheld Code Reader series
