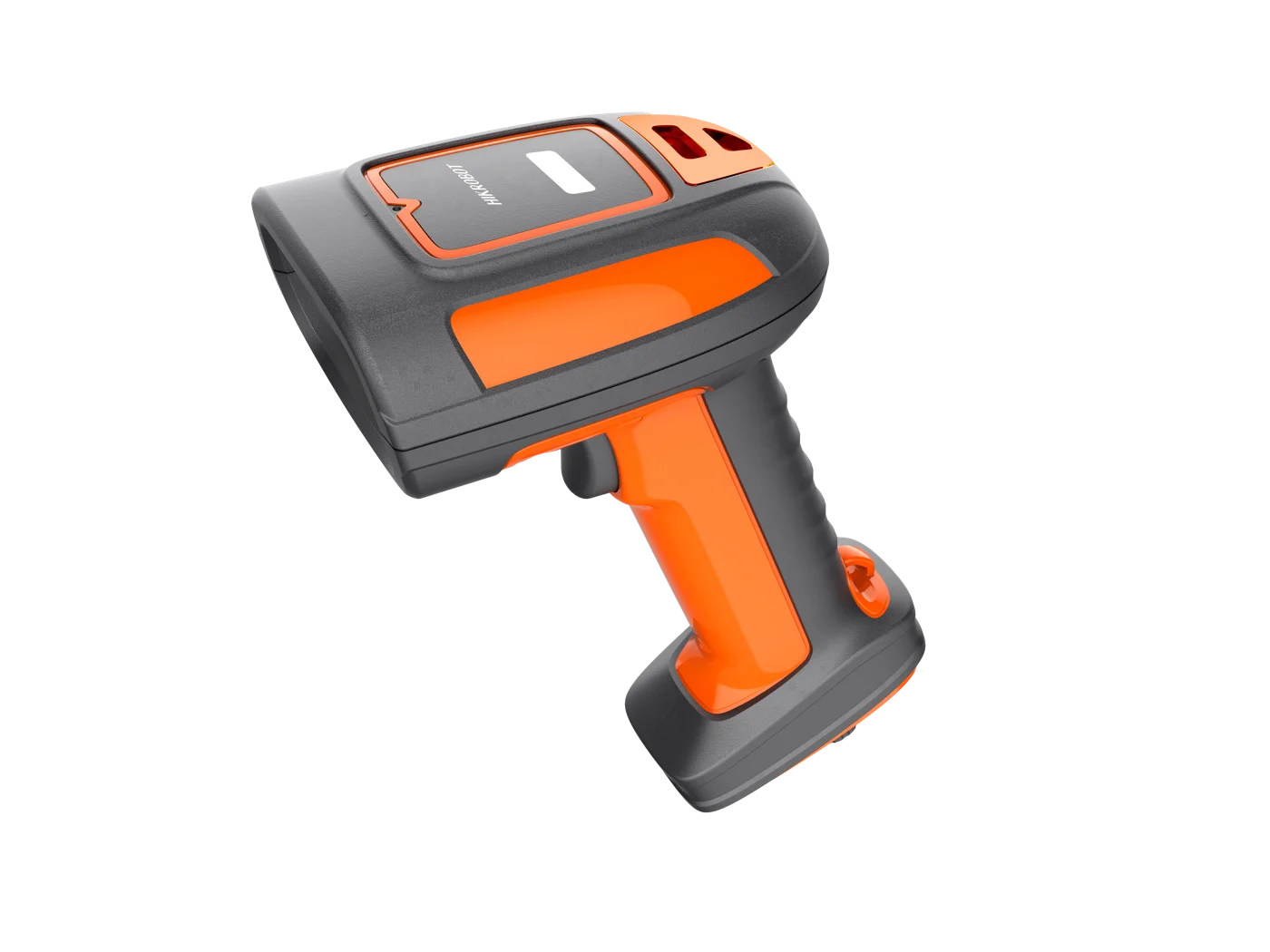

Hikrobot MV-8650/10HHD/12RN/US Rugged industrial wireless handheld code reader
Model MV-8650/10HHD/12RN/US
Hikrobot MV-8650/10HHD/12RN/US Rugged industrial wireless handheld code reader. In-house high-performance barcode algorithm with excellent DPM code reading Robust algorithm handles dirty, damaged and low-contrast codes
Features
- In-house high-performance barcode algorithm with excellent DPM code reading
- Robust algorithm handles dirty, damaged and low-contrast codes
- Bluetooth 5.0 wireless with stable connections up to 100 m in open areas, free of cables; also connects to phones, tablets and other mobile devices for more efficient operation
- With the smart base, connects to IDMVS for parameter configuration and device management
- 3150 mAh battery for long runtime
- IP65 protection and repeated 2.0 m drops for harsh industrial environments
- Special high-density and long-range reading models for diverse industrial applications
Specifications
| Model | MV-8650/10HHD/12RN/US |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, GS1- Code128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE; Matrix 2D code: QR Code, Data Matrix, MicroQR, Aztec, Han Xin; Stacked 2D code: PDF417 |
| Min. accuracy | 1.5 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 800 |
| Depth of field | Micro code (1.5 mil): 28 mm to 40 mm¹; Code 39 (2 mil): 22 mm to 47 mm; Code 39 (3 mil): 14 mm to 50 mm; Code 128 (2 mil): 25 mm to 45 mm; Code 128 (3 mil): 15 mm to 50 mm; QR Code (5 mil): 23 mm to 47 mm; QR Code (10 mil): 10 mm to 62 mm; Data Matrix (3 mil): 25 mm to 44 mm; Data Matrix (5 mil): 27 mm to 47 mm; Data Matrix (10 mil): 5 mm to 65 mm |
| Field of view | 18° (H) × 10° (V) |
| Detection angle | Tilt angle ±60°, Skew angle ±60°, Rotation angle 360° |
| Symbol contrast | 20 % |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open range) |
| Battery | 3150 mAh |
| Charging time | Shutdown mode: USB 3.0 (5 V, 1 A): 4 h, 12 VDC (12 V, 2 A): 3.5 h |
| Endurance | 13 h (interval scanning, once in 2 seconds) |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | 0 lux to 100000 lux |
| Aiming system | Cross laser aiming |
| Dimension | 73.4 mm × 104 mm × 215.2 mm |
| Prompt | LED indicator, buzzer, vibrator |
| Weight | 73.4 mm × 104 mm × 215.2 mm (2.9" × 4.1" × 8.5") |
| Ingress protection | IP65 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Drop height | 2.0 m |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Communication protocol | SmartSDK, USB (HID/CDC), Bluetooth |
| Data interface | USB 2.0, DC terminal², RS-232 |
| Charging time (smart base) | 4 h (adapter charging); 8 h (USB charging) |
| Power supply | 5 VDC (USB); 12 VDC (DC terminal) |
| Current consumption | USB 2.0: 1.5 A (max. current); 0.14 A (standby current); DC terminal: 0.7 A (max. current); 0.06 A (standby current) |
| Dimension (smart base) | 248.4 mm × 106.3mm × 69.4 mm |
| Weight (smart base) | Approx. 380 g |
| Ingress protection (smart base) | IP40 |
| Temperature (smart base) | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity (smart base) | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 0.52 kg |
