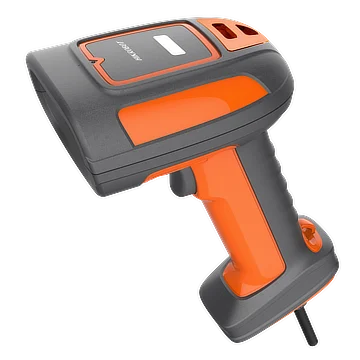

Hikrobot MV-IDH7000P/10SR/07RN/U 1MP 7mm-SR USB Industrial Handheld Code Reader
Model MV-IDH7000P/10SR/07RN/U
Hikrobot MV-IDH7000P/10SR/07RN/U 1MP 7mm-SR USB Industrial Handheld Code Reader. Built-in code reading algorithm for decoding different types of codes. Provides good robustness to read codes with spots, defects and low contrast ratio.
Datasheet (PDF) - MV-IDH7000P/10SR/07RN/UUser manual (PDF) - MV-IDH7000P/10SR/07RN/UCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH7000P/10SR/07RN/U
Features
- Built-in code reading algorithm for decoding different types of codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Adopts illumination system to provide direct lighting and diffused reflection lighting.
- Easy to replace components.
- IP65 and drop height of 2.0 m.
Specifications
| Model | MV-IDH7000P/10SR/07RN/U |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin; Stacked code: PDF417 |
| Min. accuracy | 3 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 800 |
| Depth of field | Code 39 (5 mil): 30 mm to 200 mm; Code 128 (3 mil): 55 mm to 110 mm; Code 128 (20 mil): 56 mm to 660 mm; Data Matrix (10 mil): 20 mm to 220 mm; QR Code (10 mil): 20 mm to 220 mm; QR Code (20 mil): 10 mm to 450 mm |
| Field of view | Horizontal 31°, vertical 20° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20% |
| Communication protocol | SmartSDK, USB (HID/CDC), Serial |
| Data interface | USB 2.0, DC terminal, RS-232 |
| Power supply | USB 2.0: 5 VDC; DC terminal: 12 VDC |
| Current consumption | USB 2.0: 0.9 A (max.), 0.5 A (typical); DC terminal: 0.5 A (max.), 0.28 A (typical) |
| Focal length | 6.7 mm |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | Direct lighting: white LED; Diffused reflection lighting: red LED |
| Aiming system | Cross laser aiming |
| Dimension | 73.4 mm × 104 mm × 229.5 mm (2.9" × 4.1" × 9.0") |
| Weight | Approx. 460 g (1.0 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Drop height | 2.0 m |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.74 kg |
