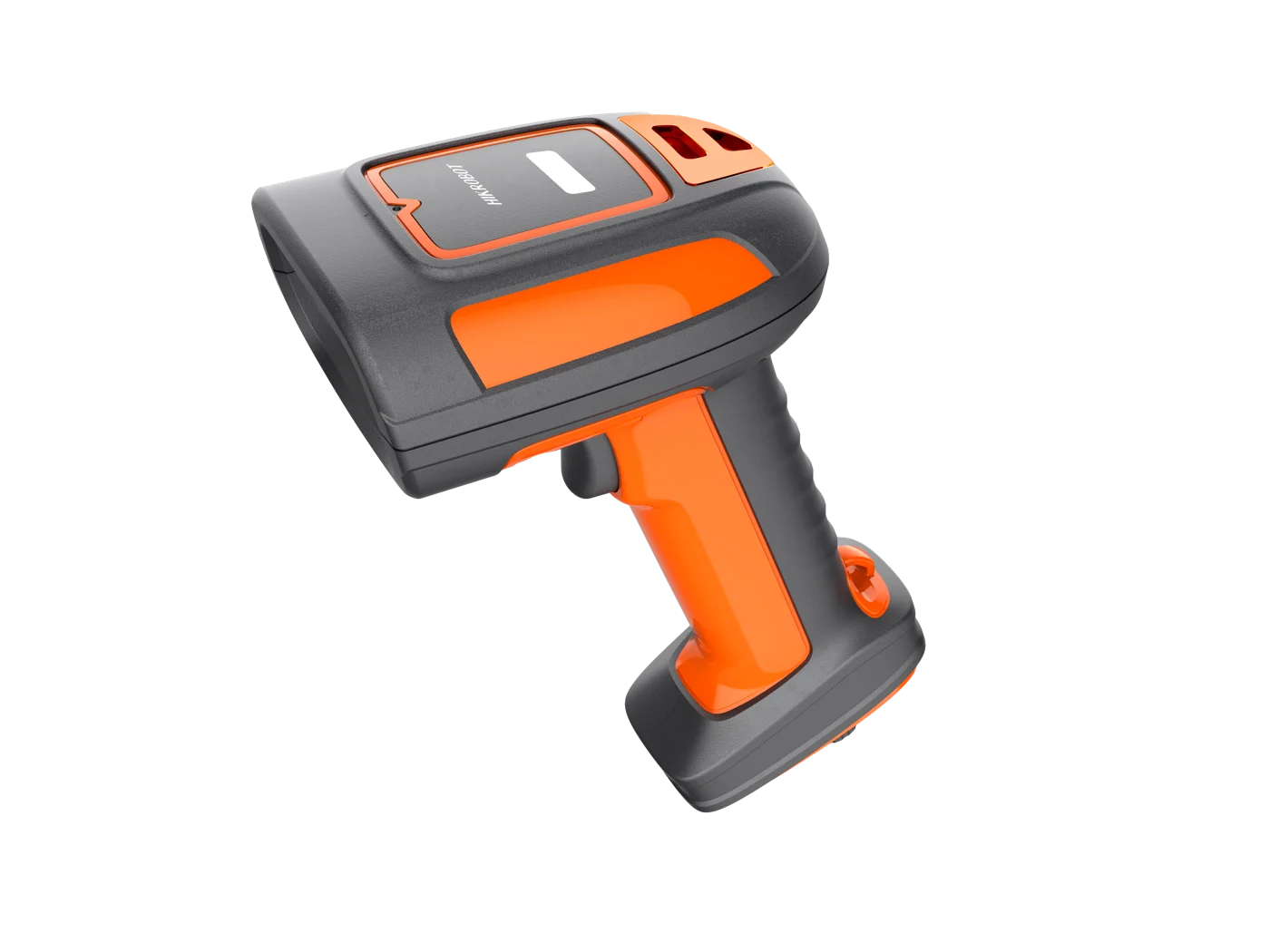

Hikrobot MV-IDH7000B/10ER/12RN/LS Rugged long-range wireless handheld code reader GigE kit
Model MV-IDH7000B/10ER/12RN/LS
Hikrobot MV-IDH7000B/10ER/12RN/LS Rugged long-range wireless handheld code reader GigE kit. In-house high-performance barcode algorithm with excellent DPM code reading Robust algorithm handles dirty, damaged and low-contrast codes
Datasheet (PDF, Chinese) - MV-IDH7000B/10ER/12RN/LSUser manual (PDF, Chinese) - MV-IDH7000B/10ER/12RN/LSCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH7000B/10ER/12RN/LS
Features
- In-house high-performance barcode algorithm with excellent DPM code reading
- Robust algorithm handles dirty, damaged and low-contrast codes
- Bluetooth 5.0 wireless with stable connections up to 100 m in open areas, free of cables; also connects to phones, tablets and other mobile devices for more efficient operation
- With the smart base, connects to IDMVS for parameter configuration and device management
- 3150 mAh battery for long runtime
- IP65 protection and repeated 2.0 m drops for harsh industrial environments
- Special high-density and long-range reading models for diverse industrial applications
Specifications
| Model | MV-IDH7000B/10ER/12RN/LS |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin; Stacked code: PDF417 |
| Min. accuracy | 10 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 800 |
| Depth of field | Code 39(10mil):540 mm ~1200 mm; Code 39(20 mil):* ~ 2100 mm; Code 39(50 mil):* ~ 3900 mm; Code 39(100 mil):* ~ 6400 mm; Code 128(10 mil):600 mm ~ 1000 mm; Code 128(20 mil):* ~ 2100 mm; Code 128(100 mil):* ~ 6400 mm; Data Matrix(50 mil):200 mm ~ 3600 mm; QR Code(20 mil):600 mm ~ 1500 mm; QR Code(33 mil)300 mm ~ 2400 mm; QR Code(100 mil):* ~ 6400 mm |
| Field of view | 18° (H) × 10° (V) |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open range) |
| Battery | 3150 mAh |
| Charging time | Shutdown mode: 12 VDC (12 V, 2 A): 3.5 h |
| Endurance | 13 h (interval scanning, once in 2 seconds) |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | 0 lux to 100000 lux |
| Aiming system | Dot laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 73.4 mm × 104 mm × 215.2 mm |
| Weight | 73.4 mm × 104 mm × 215.2 mm (2.9" × 4.1" × 8.5") |
| Ingress protection | IP65 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Drop height | 2.0 m |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Communication protocol | SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, FINS, Melsec/SLMP |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Charging time (smart base) | 4 h |
| Power supply | 12 VDC |
| Current consumption | 0.7 A (max.), 0.06 A (during standby) |
| Dimension (smart base) | 248.4 mm × 106.3mm × 69.4 mm |
| Weight (smart base) | Approx. 380 g |
| Ingress protection (smart base) | IP40 |
| Humidity (smart base) | 20% RH to 95% RH (no condensation) |
| Temperature (smart base) | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Shipping weight (estimated) | 0.52 kg |
