Hikrobot MV-IDB003X-06R 0.4 MP, 6 mm focal length, Manual focus, Red basic light, Clear-window industrial code reader
Model MV-IDB003X-06R

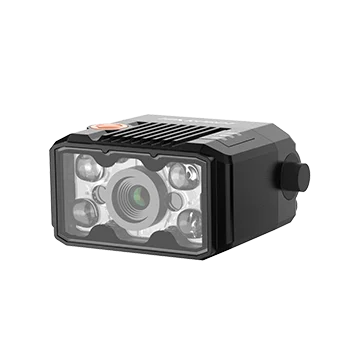

Hikrobot MV-IDB003X-06R 0.4 MP, 6 mm focal length, Manual focus, Red basic light, Clear-window industrial code reader. Ultra-compact: fits all kinds of machines and tight workstations Aviation connector: single-cable connection for simple routing
Datasheet (PDF, Chinese) - MV-IDB003X-06RUser manual (PDF, Chinese) - MV-IDB003X-06RCAD: 3D STEP + 2D DXF (ZIP) - MV-IDB003X-06R
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Aviation connector: single-cable connection for simple routing
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- External focus knob with visible focal plane
- Rich I/O interface and plug-in power connector for easy field wiring
Specifications
| Model | MV-IDB003X-06R |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc. |
| Max. frame rate | 60 fps |
| Max. reading speed | 41 codes/s |
| Sensor type | Global shutter, Mono, 1/2.9”, 6.9 μm × 6.9 μm |
| Resolution | 704 × 540 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 ~ 15 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS |
| Digital I/O | 17-pin M12 connector for power and I/O: 1 non-isolated input (Line 2), 1 non-isolated output (Line 3), 2 bi-directional configurable non-isolated I/O (Line 0/1), 1× RS-232, Device trigger via side button supported |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Avg. power: 4 W @ 12 to 24 VDC; Max. power: 11 W@12 ~ 24 VDC |
| Focal length | 6.72 mm |
| Field of view | 39° (H) × 30° (V) |
| Lens mount | Approx. 4.6 W @ 5 VDC |
| Light source | Red |
| Aiming system | Green LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Shell material | Metal |
| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | 10 Hz ~ 55 Hz, Full amplitude 1.5 mm X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | 30 g / 11 ms, Half-sine wave, Six axes, 500 shocks per axis (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.32 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the ID2000 Series Industrial Code Reader series
