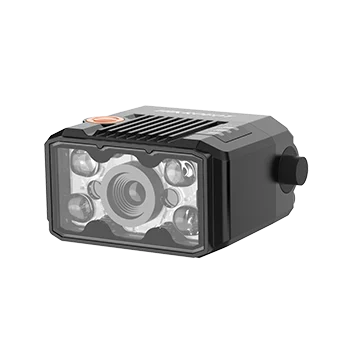

Hikrobot IA-IDC-0132-06S-RBN-YAG 1.3 MP ultra-compact smart code reader
Model IA-IDC-0132-06S-RBN-YAG
Hikrobot IA-IDC-0132-06S-RBN-YAG 1.3 MP ultra-compact smart code reader. Ultra-compact: fits all kinds of machines and tight workstations Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Rich I/O interface and plug-in power connector for easy field wiring
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- External focus knob with visible focal plane
Specifications
| Model | IA-IDC-0132-06S-RBN-YAG |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc. |
| Max. frame rate | 60 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 4 μm × 4 μm |
| Sensor size | 1/2.7” |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs ~ 1 sec |
| Gain | 0 ~ 15 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, Fins |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector for power and I/O: 1 non-isolated input (Line 2), 1 non-isolated output (Line 3), 2 bidirectional configurable non-isolated I/O (Line 0/1), 1 RS-232; Triggering via side button supported |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 3.8 W@24 VDC |
| Focal length | 6.72 mm |
| Lens mount | Approx. 4.6 W @ 5 VDC |
| Working distance | 40 ~ 120 mm |
| Ambient illumination | 0 ~ 50000 lux |
| Light source | Red |
| Aiming system | Green LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.32 kg |
