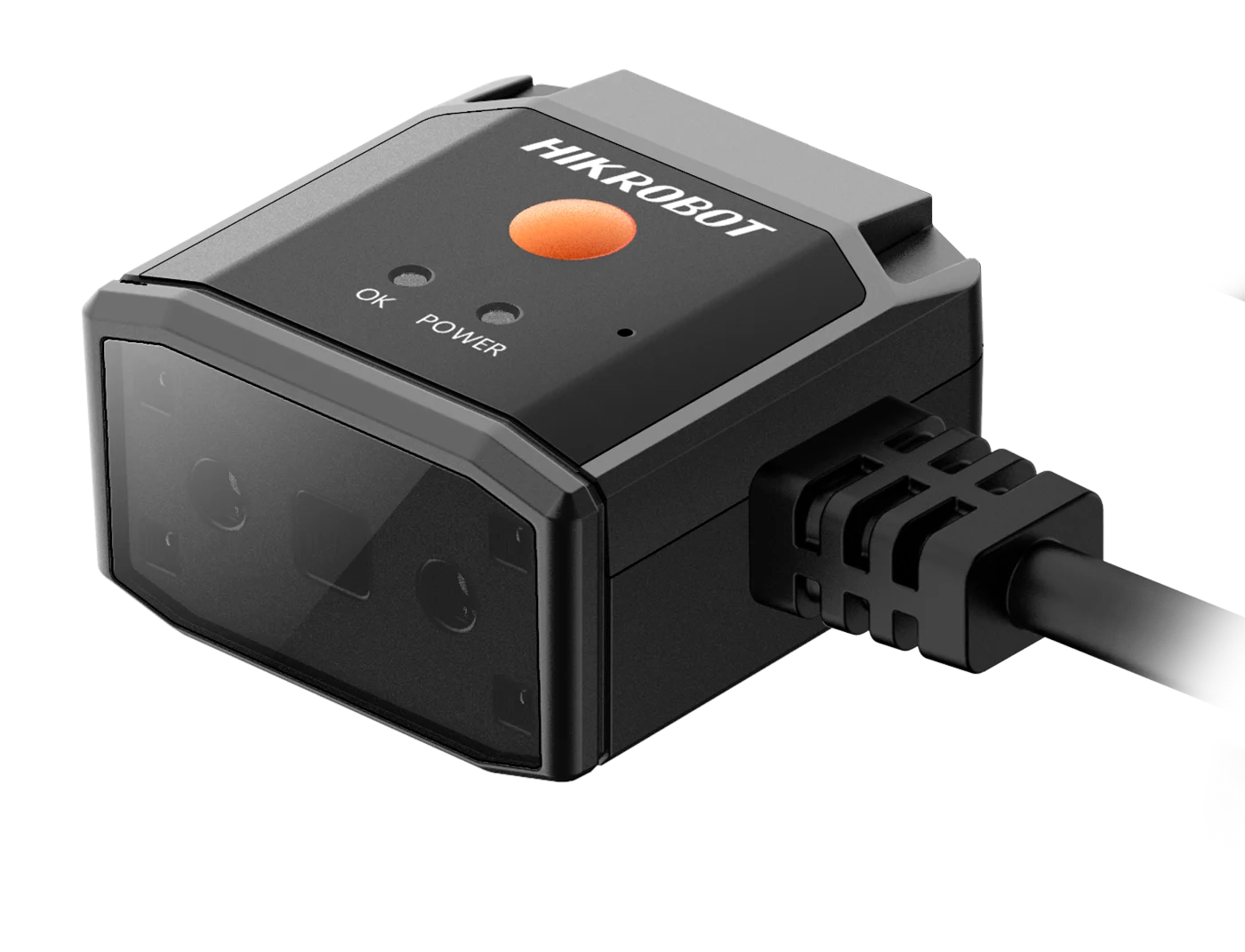

Hikrobot MV-HY-MED-A13-03N-WBP-S ID2013EM medical-dedicated, 1.3 MP resolution, 3 mm focal length, 70 mm focus distance, White light, Polarized, Side cable exit
Model MV-HY-MED-A13-03N-WBP-S
Hikrobot MV-HY-MED-A13-03N-WBP-S ID2013EM medical-dedicated, 1.3 MP resolution, 3 mm focal length, 70 mm focus distance, White light, Polarized, Side cable exit. Dedicated medical recognition algorithm for accurate decoding, minimizing missed and false reads Compact body fits the tight spaces of small equipment
Datasheet (PDF, Chinese) - MV-HY-MED-A13-03N-WBP-SUser manual (PDF, Chinese) - MV-HY-MED-A13-03N-WBP-SCAD: 3D STEP + 2D DXF (ZIP) - MV-HY-MED-A13-03N-WBP-S
Features
- Dedicated medical recognition algorithm for accurate decoding, minimizing missed and false reads
- Compact body fits the tight spaces of small equipment
- Extra-wide field of view for large coverage at short distances
- Dual LED aimers assist installation and marking out the reading area
Specifications
| Model | MV-HY-MED-A13-03N-WBP-S |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE; Matrix 2D code: QR Code, Data Matrix |
| Max. frame rate | 50 fps |
| Max. reading speed | 30 codes/sec |
| Sensor type | CMOS, global shutter, mono, 1/4", 2.7 μm × 2.7 μm |
| Resolution | 1024 × 1280 |
| Exposure time | 60 μs ~ 6000 μs |
| Gain | 1 ~ 28 dB |
| Depth of field | Code 39(5 mil):40 ~ 120 mm; Code 128(10 mil):15 ~ 250 mm; EAN13(13 mil):30 ~ 280 mm; QR Code(10 mil):35 ~ 155 mm; QR Code(15 mil):15 ~ 215 mm; QR Code(20 mil):15 ~ 270 mm |
| Data interface | RS-232, Fast Ethernet(100 Mbit/s), DC terminal |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP |
| Digital I/O | DB15 connector for power and I/O, Incl. 2 opto-isolated inputs (pin 0/1 input), 2 opto-isolated outputs (pin 3/4 output), 1× RS-232, Trigger via side button supported, Device reboot |
| Power supply | 5(±5%) ~ 24(±10%)VDC |
| Power consumption | Avg. power: 2.2 W @ 12 VDC; Max. power: 4.5 W @ 12 VDC |
| Focal length | 2.48 mm |
| Lens mount | M5.5-Mount |
| Ambient illumination | 0 ~ 10000 lux |
| Light source | White (polarized) |
| Aiming system | Green LED |
| Indicator | Power indicator (POWER), status indicator (OK/NG) |
| Shell material | PVC |
| Dimension | 45 mm × 43 mm × 25 mm |
| Weight | Approx. 68.5 g (0.2 lb.) |
| Ingress protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
