Fixed code readers

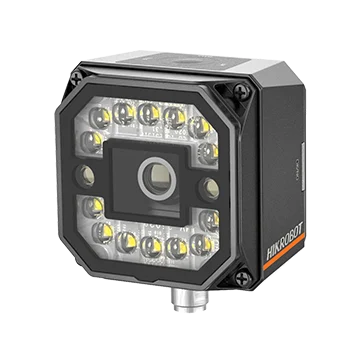

Hikrobot MV-ID350PM 5 MP industrial code reader
Model MV-ID350PM
Hikrobot MV-ID350PM 5 MP industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions High-performance 4.2 MP sensor: wide field of view and excellent image quality
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- High-performance 4.2 MP sensor: wide field of view and excellent image quality
- Single cable provides a rich I/O interface for multiple input and output signals
- 14-LED composite light with fast switching between polarized and non-polarized modes
- Top ring indicator and dual side-strip result indicators show working status at a glance
- External dual LED aimer for easy alignment
Specifications
| Model | MV-ID350PM |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, INDUSTRIAL25, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc. |
| Max. frame rate | 30 fps |
| Max. reading speed | 60 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.2 µm × 3.2 µm |
| Sensor size | 1/1.7” |
| Resolution | 2560 × 2048 |
| Exposure time | 60 μs ~ 1 sec |
| Gain | 0 dB ~ 18 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP, UDP |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector for power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1× RS-232 output |
| Power supply | 24 VDC |
| Max. power consumption | 10.6 W @ 24 VDC (built-in light on) |
| Focal length | 8mm |
| Lens mount | M12-Mount, Mechanical focus |
| Lens cap | Semi-polarizing lens cover, Clear and full-polarizing lens covers optional |
| Light source | Focused white light, Focused red/blue/IR light optional |
| Indicator | Power indicator PWR, Network indicator LNK/ACT, User indicators U1/U2 |
| Dimension | 65.2 mm×65.2 mm×47 mm |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Operating temperature: 0 to 50 ℃, Storage temp.: -30 to 70 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
| Shipping weight (estimated) | 0.49 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the ID3000 Series Industrial Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-ID3030XM-25M-RBN | 3.1 MP, 1/1.45", 25 mm lens | Price on request | 5 in stock | View |
| MV-ID3030XM-16L-RBN | 3.1 MP, 1/1.45", 16 mm lens | Price on request | 3 in stock | View |
| MV-ID3050XM-12M-RBN | 5 MP, 12 mm lens | Price on request | 5 in stock | View |
| MV-ID3050XM-16M-RBN | 5 MP, 16 mm lens | Price on request | 4 in stock | View |
| MV-ID3050XM-25M-RBN | 5 MP, 25 mm lens | Price on request | 3 in stock | View |
| MV-ID3050XM-16L-RBN | 5 MP, 16 mm lens | Price on request | 5 in stock | View |
| MV-ID3400L-16S-WBN | 1.3 MP, 1/2.7", 6 mm lens | Price on request | 4 in stock | View |
| MV-ID3050PM-08M-WBN | 5 MP, 8 mm lens | Price on request | 2 in stock | View |
| MV-ID3050PM-25M-WBN | 5 MP, 25 mm lens | Price on request | 2 in stock | View |
| MV-ID3050PM-16M-WBN | 5 MP, 16 mm lens | Price on request | 5 in stock | View |
| MV-ID3050PM-12M-WBN | 5 MP, 12 mm lens | Price on request | 3 in stock | View |
| MV-ID3016XM-25M-RBN | 1.4 MP, 25 mm lens | Price on request | 4 in stock | View |
| MV-ID3013PM-15M-WBN-8 | 1.3 MP, 14.8 mm lens | Price on request | 4 in stock | View |
| MV-ID3013PM-06M-WBN-8 | 1.3 MP, 6 mm lens | Price on request | 2 in stock | View |
| MV-ID3013PM-12M-WBN-8 | 1.3 MP, 12 mm lens | Price on request | 3 in stock | View |
| MV-ID3031XMT-08M-RBN | 5 MP, 8 mm lens | Price on request | 4 in stock | View |
| MV-ID3050PM | 5.2 MP, 8 mm lens | Price on request | 5 in stock | View |
| MV-ID3KM-T13M-06M-WBN | 1.3 MP, 6 mm lens | Price on request | 5 in stock | View |
| MV-ID3XM-T16M-08M-RBN | 1.4 MP, 8 mm lens | Price on request | 3 in stock | View |
| MV-ID3168XM | 1.4 MP, 8 mm lens | Price on request | 5 in stock | View |
| MV-ID3248A-CZ-W | 5 MP, 8 mm lens | Price on request | 5 in stock | View |
| MV-ID3060RM-25M-RBN | 6.1 MP, 25 mm lens | Price on request | 4 in stock | View |
| MV-ID3060RM-16M-RBN | 6.1 MP, 16 mm lens | Price on request | 4 in stock | View |
| MV-ID3060RM-12M-RBN | 6.1 MP, 12 mm lens | Price on request | 5 in stock | View |
See all 157 models in the ID3000 Series Industrial Code Reader series
