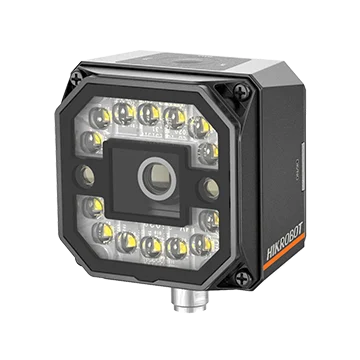

Hikrobot MV-ID3050PM-25M-WBN 25 mm lens, 5 MP resolution industrial smart code reader
Model MV-ID3050PM-25M-WBN
Hikrobot MV-ID3050PM-25M-WBN 25 mm lens, 5 MP resolution industrial smart code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions High-performance 5 MP sensor: wide field of view and excellent image quality
Datasheet (PDF, Chinese) - MV-ID3050PM-25M-WBNUser manual (PDF, Chinese) - MV-ID3050PM-25M-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID3050PM-25M-WBN
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- High-performance 5 MP sensor: wide field of view and excellent image quality
- Single cable provides a rich I/O interface for multiple input and output signals
- 14-LED composite light with fast switching between polarized and non-polarized modes
- Top ring indicator and dual side-strip result indicators show working status at a glance
- External dual LED aimer for easy alignment
Specifications
| Model | MV-ID3050PM-25M-WBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode, etc.; Matrix 2D code: QR Code, Data Matrix, MicroQR, AZTEC, HanXin, etc.; Stacked 2D code: PDF417, etc. |
| Max. frame rate | 50 fps |
| Max. reading speed | 60 codes/sec |
| Sensor type | Global shutter, Mono, 1/1.7”, 3.4 μm × 3.4 μm |
| Resolution | 2432 × 2048 |
| Exposure time | 60 μs ~ 1 sec |
| Gain | 0 dB ~ 18 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, EtherNet/IP, ModBus, UDP, FINS |
| Digital I/O | 17-pin M12 connector for power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1× RS-232 output |
| Power supply | 24 VDC |
| Power consumption | Avg. power: 9 W @ 24 VDC (built-in light on); Max. power: 48 W @ 24 VDC (built-in light on) |
| Focal length | 25 mm |
| Field of view | 18° (H) × 15° (V) |
| Lens mount | M12-mount, mechanical focus |
| Lens cap | Semi-polarized, Optional fully polarized/clear/diffuse/IR long-pass |
| Light source | White light, Optional red/blue/red-blue/IR/UV light |
| Indicator | Power indicator PWR, Network indicator LNK/ACT, Status indicator STS, Result indicator OK/NG |
| Shell material | Metal |
| Dimension | 65.2 mm×65.2 mm×47 mm |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.49 kg |
