Frame grabbers

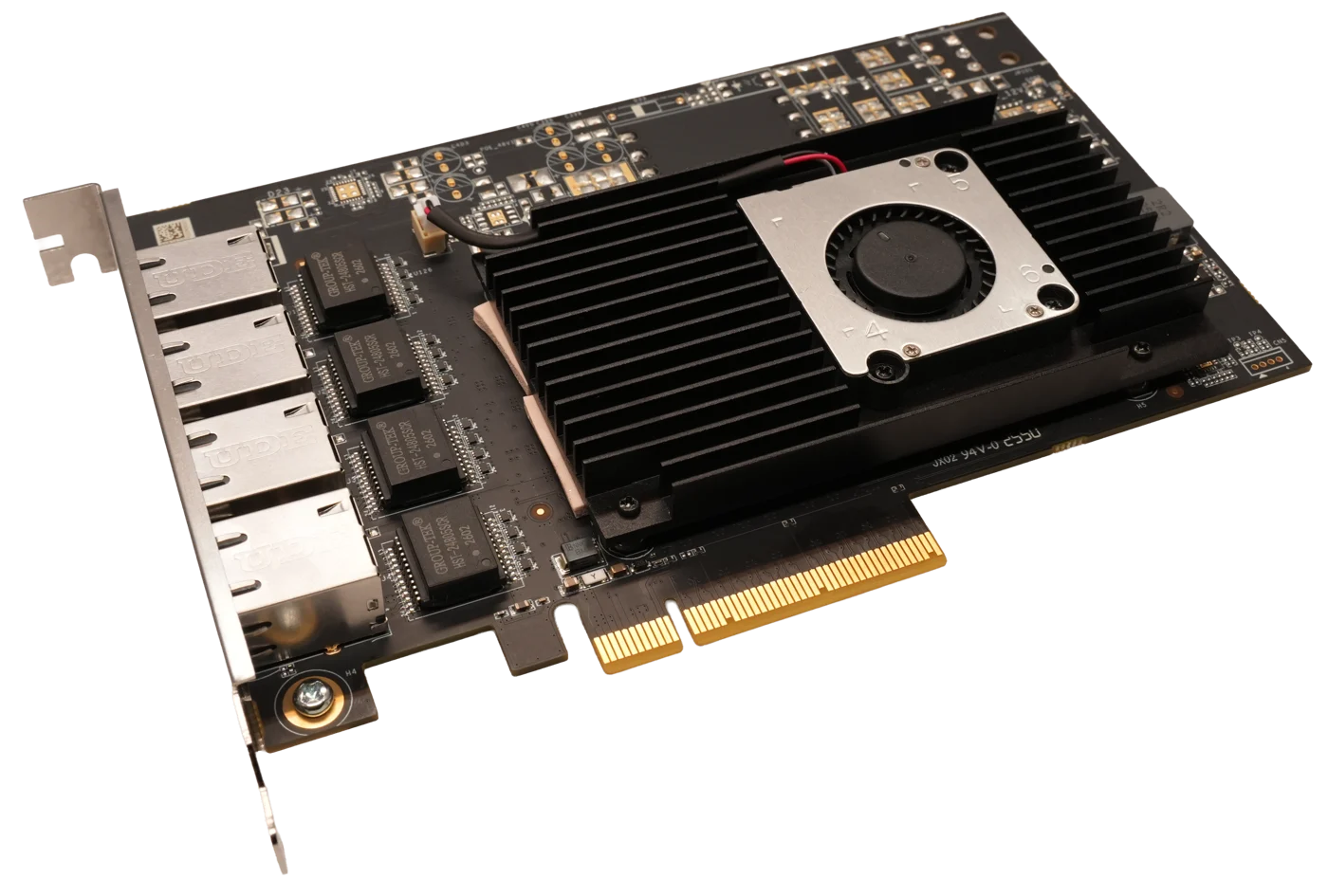

Hikrobot MV-GT2104 Quad-port copper 10GbE NIC
Model MV-GT2104
Hikrobot MV-GT2104 Quad-port copper 10GbE NIC. General-purpose network card with up to 10 Gbps per port Supports IEEE 802.3
Features
- General-purpose network card with up to 10 Gbps per port
- Supports IEEE 802.3
- 1/4 10GigE ports with independent bandwidth
- 1-port network card with full-height and low-profile brackets for 2U, 3U and 4U chassis
Specifications
| Model | MV-GT2104 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 x 8 |
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth); 6700 MB/s (sustained transmission bandwidth) |
| Standard | IEEE802.3 |
| Interface | RJ45 × 4 |
| Camera type supported | 10 GigE industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 1000/2500/5000/10000 Mbps |
| Stream | 4 |
| Power consumption | 12.5 W (excluding PoE) |
| Dimension | 181 mm × 126.3 mm × 22.4 mm |
| Weight | 205.14 g |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Cooling mode | Natural cooling |
| Operating system | Windows 10, Windows 11, Linux |
| Certification | RoHS, CE, KC |
| Shipping weight (estimated) | 0.39 kg |
