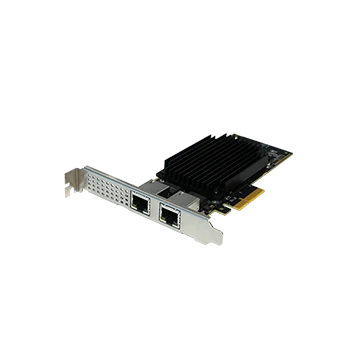

Hikrobot MV-GT2002 Dual 10GigE Ethernet Adaptor
Model MV-GT2002
Hikrobot MV-GT2002 Dual 10GigE Ethernet Adaptor. Max. 10 Gbps data transfer speed of single RJ45 connector. Supports IEEE 802.3 protocol.
Features
- Max. 10 Gbps data transfer speed of single RJ45 connector.
- Supports IEEE 802.3 protocol.
- Adopts two independent RJ45 connectors at most.
- Supports 3U and 4U chassis.
Specifications
| Model | MV-GT2002 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 × 4 |
| Delivery bandwidth | 31.5 Gbps (max. transmission bandwidth); 20 Gbps (sustained transmission bandwidth) |
| Standard | IEEE 802.3 |
| Interface | RJ45 × 2 |
| Camera type supported | 10 GigE industrial camera |
| Camera quantity supported | 2 at most |
| Camera connection speed | 1000 Mbps / 10000 Mbps |
| Stream | 1; 2 |
| Power consumption | Typ. 12 W |
| Dimension | 160.9 mm × 104.9 mm × 21.6 mm (6.3" × 4.1" × 0.9") |
| Weight | 125 g (0.3 lb.) |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Operating system | 64-bit Windows 7/10/11, Linux |
| Certification | RoHS, CE, KC |
| Shipping weight (estimated) | 0.28 kg |
