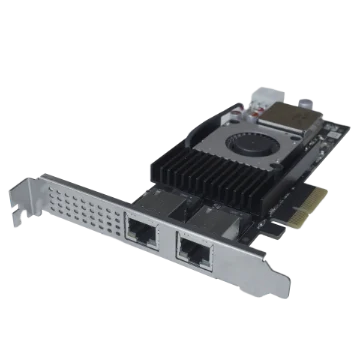

Hikrobot MV-GT2102P Dual-port copper 10GbE NIC, PoE power supported
Model MV-GT2102P
Hikrobot MV-GT2102P Dual-port copper 10GbE NIC, PoE power supported. General-purpose network card with up to 10 Gbps per port Supports IEEE 802.3
Features
- General-purpose network card with up to 10 Gbps per port
- Supports IEEE 802.3
- 4 10GigE ports with independent bandwidth
- Supports 3U and 4U chassis, with PoE power
Specifications
| Model | MV-GT2102P |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 x 4 |
| Delivery bandwidth | 4000 MB/s (max. transmission bandwidth); 3200 MB/s (sustained transmission bandwidth) |
| Standard | IEEE802.3 |
| Interface | RJ45 ×2 |
| Camera type supported | 10 GigE industrial camera |
| Camera quantity supported | 2 at most |
| Camera connection speed | 1000/2500/5000/10000 Mbps |
| Stream | 2 |
| Power consumption | 12.5 W (excluding PoE) |
| Dimension | 161 mm × 120 mm × 21.6 mm |
| Weight | 147.74 g |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Cooling mode | Natural cooling |
| Operating system | Windows 10, Windows 11, Linux |
| Certification | RoHS, CE, KC |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 10GigE Adaptors series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-GT2001 | 10GigE | Price on request | 2 in stock | View |
| MV-GT2002 | 10GigE | Price on request | 3 in stock | View |
| MV-GT2102 | 10GigE | Price on request | 3 in stock | View |
| MV-GT2101 | 10GigE | Price on request | 5 in stock | View |
| MV-GT2104 | 10GigE | Price on request | 2 in stock | View |
| MV-GT2104P | 10GigE | Price on request | 4 in stock | View |
