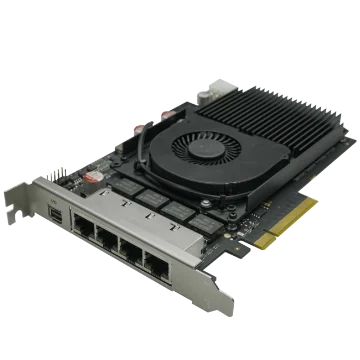

Hikrobot MV-GT1104P Quad 10GigE Frame Grabbers
Model MV-GT1104P
Hikrobot MV-GT1104P Quad 10GigE Frame Grabbers. Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed. Supports PCI-E gen3 × 8 bus interface and the max. bus bandwidth of 40 Gbps.
Features
- Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
- Supports PCI-E gen3 × 8 bus interface and the max. bus bandwidth of 40 Gbps.
- Supports card-end pre-processing to reduce CPU load.
- Supports data packet resending, event control, etc.
- Adopts multiple I/O connectors for input and output.
- Provides SDK for secondary development.
- Complies with Genlcam standard.
Specifications
| Model | MV-GT1104P |
|---|---|
| Brand | Hikrobot |
| On-board memory | 4 GB DDR4-RAM |
| Interconnect | PCI-E gen3 × 8 |
| Delivery bandwidth | 7000 MB/s (max. transmission bandwidth); 6750 MB/s (sustained transmission bandwidth) |
| Bus indicator | 1 |
| Standard | GigE Vision V2.0 |
| Interface | RJ45 × 4, supports PoE |
| Camera type supported | GigE industrial camera, 10 GigE industrial camera, and 2.5 GigE industrial camera |
| Camera quantity supported | 4 at most (total bandwidth up to 40 Gbps) |
| Camera connection speed | 10 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Pixel format | Mono 8/10/10p/12/12p/16; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| I/O Type | Configurable input/output × 6, compatible with single-ended/differential, and supports cascading of multiple frame grabbers; I/O on bracket: Line 0/1/2/3 supports 3.3 VDC to 24 VDC input, and 3.3 VDC output, N-terminal reference voltage is adjustable simultaneously; I/O on PCB: Line 4/5 supports 3.3 VDC to 24 VDC input and 3.3 VDC output |
| Connector | I/O on bracket: Mini-DP, female, 20-pin; I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes) |
| Power consumption | Typ. 28.5 W |
| Dimension | 181 mm × 126.3 mm × 22.4 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11 |
| Certification | CE, KC, RoHS |
| Shipping weight (estimated) | 0.38 kg |
