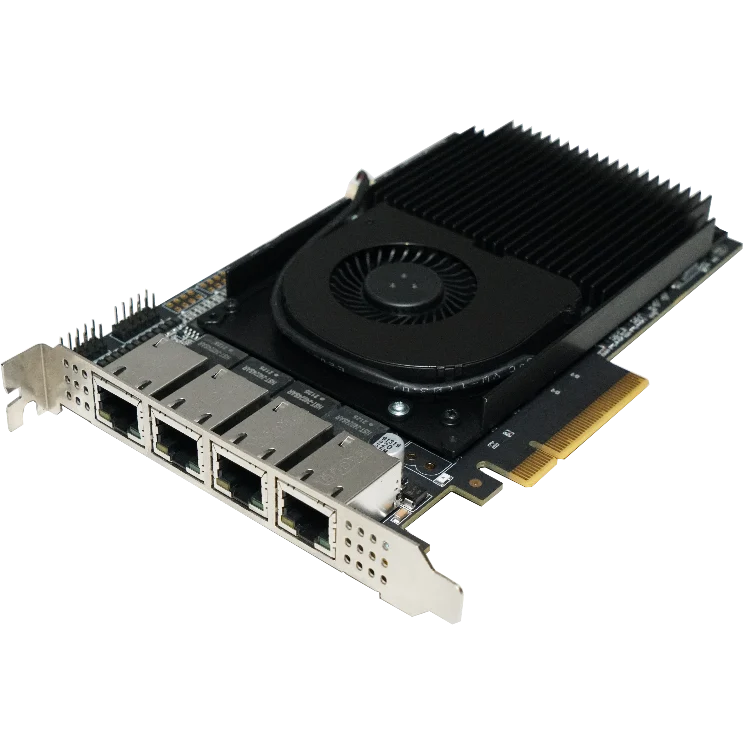

Hikrobot MV-GT1004 Quad 10GigE Frame Grabbers
Model MV-GT1004
Hikrobot MV-GT1004 Quad 10GigE Frame Grabbers. Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed. Supports data packet resending, event control, etc.
Features
- Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
- Supports data packet resending, event control, etc.
- Various indicators indicate frame grabber status in real time.
- Adopts multiple I/O connectors for input and output.
- Provides SDK for secondary development.
- Complies with Genlcam standard.
Specifications
| Model | MV-GT1004 |
|---|---|
| Brand | Hikrobot |
| On-board memory | 2 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 8 |
| Delivery bandwidth | 3900 MB/s (max. transmission bandwidth); 3350 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | GigE Vision V2.0 |
| Interface | RJ45 × 4 |
| Camera type supported | GigE industrial camera and 10 GigE industrial camera |
| Camera quantity supported | 4 at most (total bandwidth up to 27 Gbps) |
| Camera connection speed | 10 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Pixel format | Mono 8/10/10p/12/12p/16; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| I/O Type | Configurable input/output × 8, compatible with single-ended/differential; Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output; Line 2/3 supports 3.3 VDC to 24 VDC input and 3.3 VDC output |
| Connector | 9-pin header |
| Power consumption | Typ. 24 W |
| Dimension | 181 mm × 126.3 mm × 21.4 mm (7.1" × 5.0" × 0.8") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu18.04 to 22.04 on Linux |
| Certification | CE, KC, RoHS |
| Shipping weight (estimated) | 0.38 kg |
