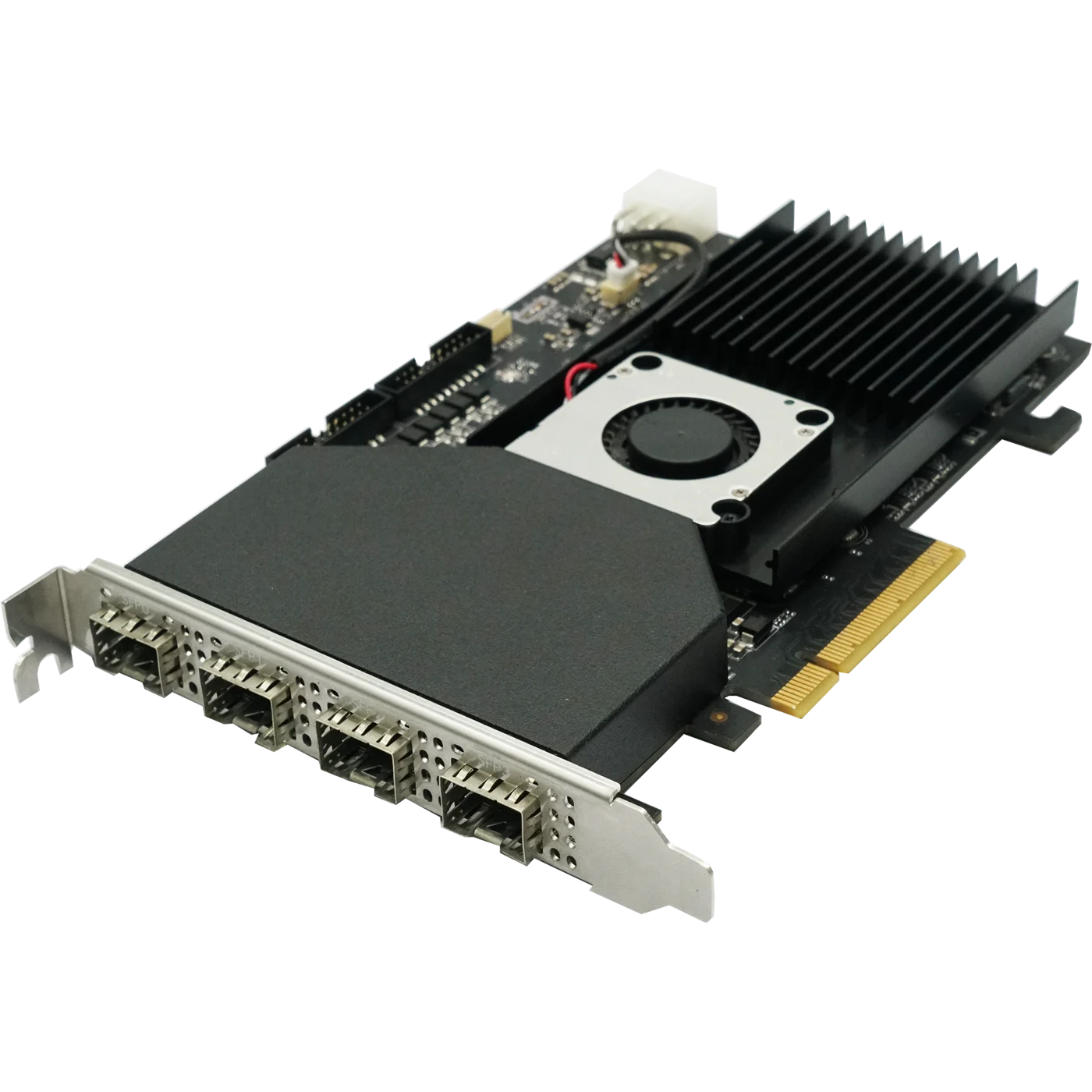

Hikrobot MV-GS1004 Quad 10Gbps SFP Frame Grabber
Model MV-GS1004
Hikrobot MV-GS1004 Quad 10Gbps SFP Frame Grabber. Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed. Various indicators indicate frame grabber status in real time.
Features
- Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
- Various indicators indicate frame grabber status in real time.
- Adopts multiple I/O connectors for input and output.
- Provides SDK for secondary development.
- Complies with Genlcam standard.
Specifications
| Model | MV-GS1004 |
|---|---|
| Brand | Hikrobot |
| On-board memory | 2 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 8 |
| Delivery bandwidth | 3900 MB/s (max. transmission bandwidth); 3350 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | GigE Vision V2.0 |
| Interface | SFP × 4 |
| Camera type supported | 10 GigE industrial camera |
| Camera quantity supported | 4 at most (total bandwidth up to 27 Gbps) |
| Camera connection speed | 10 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Pixel format | Mono 8/10/10p/12/12p; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Connector | Female header |
| Power consumption | Typ. 20 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.38 kg |
