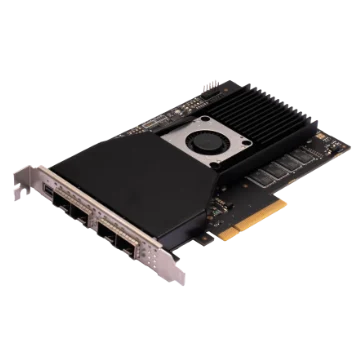

Hikrobot MV-GS1104F-DF XoF frame grabber, 4 ports, SFP+ slot, 40G total bandwidth supported, DataForwarding function
Model MV-GS1104F-DF
Hikrobot MV-GS1104F-DF XoF frame grabber, 4 ports, SFP+ slot, 40G total bandwidth supported, DataForwarding function. Data Forwarding support Daisy-chain up to 10 frame grabbers, with up to 300 m between frame grabbers
Datasheet (PDF, Chinese) - MV-GS1104F-DFUser manual (PDF, Chinese) - MV-GS1104F-DFCAD: 3D STEP + 2D DXF (ZIP) - MV-GS1104F-DF
Features
- Data Forwarding support
- Daisy-chain up to 10 frame grabbers, with up to 300 m between frame grabbers
- Multi-port XoFLink fiber transmission for stable data transfer
- PCI-E Gen3 ×8 bus supports simultaneous 10 Gbps acquisition from 4 cameras
- Bus and channel indicators report frame grabber status in real time
- Rich I/O interface with multiple integrated inputs and outputs
- SDK provided for secondary development
Specifications
| Model | MV-GS1104F-DF |
|---|---|
| Brand | Hikrobot |
| On-board memory | 4 GB DDR4 |
| Interconnect | PCI-E gen3 × 8 |
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth); 6700 MB/s (sustained transmission bandwidth) |
| Bus indicator | 1 |
| Standard | XoFLink |
| SFP+ module | 4 × SFP+ |
| Data interface | 2LC fiber port |
| Camera quantity supported | 1/2/3/4 |
| Camera connection speed | 10 Gbps for single port, 40 Gbps in total |
| Stream | 2 |
| Stream indicator | 4 |
| I/O Type | Provides 11 configurable I/O connectors, compatible with single-ended/differential signals, and supports cascading of multiple frame grabbers.; ● I/O on bracket: Line 0 to Line 7 supports input and output (3.3 V to 24 V); ● I/O on PCB: Line 8 to Line 10 supports input (3.3 V to 12 V) and output (3.3 V) |
| Connector | I/O on bracket: Mini-DP, female, 20-pin; I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes) |
| Power consumption | 20 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux |
| Certification | CE, KC, RoHS |
| Shipping weight (estimated) | 0.38 kg |
