Hikrobot MV-GS1104F XoF SFP+ Frame Grabbers, 4 ports, 40G bandwidth
Model MV-GS1104F

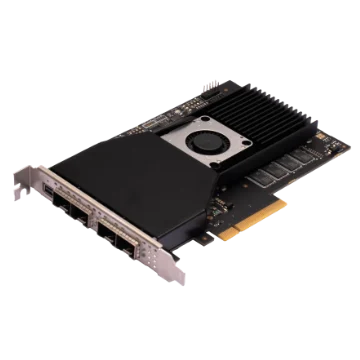

Hikrobot MV-GS1104F XoF SFP+ Frame Grabbers, 4 ports, 40G bandwidth. Supports XoFLink protocol with multiple fiber ports to transmit data. Utilizes an interconnect of PCI-E gen3 × 8 to support image capture from 4 cameras simultaneously at a speed of 10 Gbps.
Features
- Supports XoFLink protocol with multiple fiber ports to transmit data.
- Utilizes an interconnect of PCI-E gen3 × 8 to support image capture from 4 cameras simultaneously at a speed of 10 Gbps.
- Various indicators indicate frame grabber status in real time.
- Adopts multiple I/O connectors for input and output.
- Provides SDK for secondary development.
Specifications
| Model | MV-GS1104F |
|---|---|
| Brand | Hikrobot |
| On-board memory | 4 GB DDR4 |
| Interconnect | PCI-E gen3 × 8 |
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth); 6700 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | XoFLink |
| SFP+ module | SFP+ × 4 |
| Data interface | 2LC fiber port |
| Camera quantity supported | 1/2/3/4 |
| Camera connection speed | 10 Gbps for single port, 40 Gbps in total |
| Stream | 4 |
| LED indicator | 4 |
| I/O Type | Provides 11 configurable I/O connectors, compatible with single-ended/differential signals, and supports cascading of multiple frame grabbers.; ● I/O on bracket: Line 0 to Line 7 supports input and output (3.3 V to 24 V); ● I/O on PCB: Line 8 to Line 10 supports input (3.3 V to 12 V) and output (3.3 V) |
| Connector | Connector of I/O on bracket: 20-pin MiniDP female connector; Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 x 5, 10-pin hole) |
| Power consumption | Typ. 20 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu 16.04 to 20.04 on Linux |
| Certification | CE, KC, RoHS |
| Shipping weight (estimated) | 0.38 kg |
