Frame grabbers

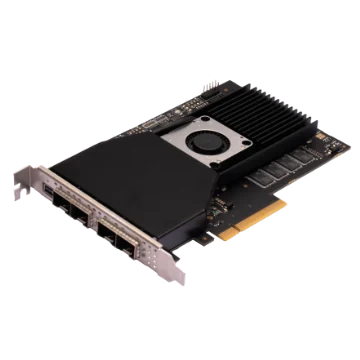

Hikrobot MV-GS1104F-CR XoF fiber-port frame grabber
Model MV-GS1104F-CR
Hikrobot MV-GS1104F-CR XoF fiber-port frame grabber. Multi-port XoFLink fiber transmission for stable data transfer PCI-E Gen3 ×8 bus supports simultaneous 10 Gbps acquisition from 4 cameras
Features
- Multi-port XoFLink fiber transmission for stable data transfer
- PCI-E Gen3 ×8 bus supports simultaneous 10 Gbps acquisition from 4 cameras
- Bus and channel indicators report frame grabber status in real time
- Rich I/O interface with multiple integrated inputs and outputs
- SDK provided for secondary development
Specifications
| Model | MV-GS1104F-CR |
|---|---|
| Brand | Hikrobot |
| On-board memory | 4 GB DDR4 |
| Interconnect | PCI-E gen3 × 8 |
| Delivery bandwidth | 7800 MB/s (peak bandwidth), 6700 MB/s (sustained bandwidth) |
| Bus indicator | 1 |
| Standard | XoFLink |
| SFP+ module | 4 × SFP+ |
| Data interface | 2LC fiber port |
| Camera quantity supported | 1/2/3/4 |
| Camera connection speed | 10 Gbps for single port, 40 Gbps in total |
| Stream | 4 |
| Stream indicator | 4 |
| I/O Type | 11 configurable inputs/outputs, Single-ended/differential compatible, Multi-card cascading supported. Bracket I/O: Line 0 to 7, 3.3 to 24 V input/output; Pin-header I/O: Line 8 to 10, 3.3 to 12 V input, 3.3 V output |
| Connector | Bracket I/O: Mini-DP, Female, 20 pin; Pin header I/O: 9-pin header (2.54 mm pitch, 2 × 5, 10-pin blind hole) |
| Power consumption | 20 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Linux: Ubuntu 16.04 to 20.04 |
| Certification | CE, KC, RoHS |
| Shipping weight (estimated) | 0.38 kg |
