3D sensors

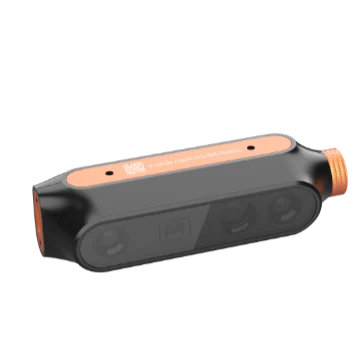

Hikrobot MV-EB435i V2.0 Stereo perception camera
Model MV-EB435i V2.0
Hikrobot MV-EB435i V2.0 Stereo perception camera. Active stereo technology with synchronized high-frame-rate RGB and depth map output V2.0 optimized optical design for higher-quality depth maps
Datasheet (PDF, Chinese) - MV-EB435i V2.0User manual (PDF, Chinese) - MV-EB435i V2.0CAD: 3D STEP + 2D DXF (ZIP) - MV-EB435i V2.0
Features
- Active stereo technology with synchronized high-frame-rate RGB and depth map output
- V2.0 optimized optical design for higher-quality depth maps
- Factory-calibrated intrinsics and multi-platform SDK for fast, easy secondary development
- Narrow-band filter for stronger interference resistance
- Ultra-small with mounting holes on multiple sides for any installation requirement
Specifications
| Model | MV-EB435i V2.0 |
|---|---|
| Brand | Hikrobot |
| Near field of view | 310 mm × 210 mm |
| Far field of view | 9200 mm × 5200 mm |
| Clearance distance (CD) | 200 mm |
| Measurement range (MR) | 4800 mm |
| Field of view | Depth map FOV: 84° × 55° |
| Depth image detection accuracy | Accuracy: 1.5% @0.2 m ~ 3 m; Hole rate: < 0.2% |
| Sensor type | IR sensor: global shutter; Color sensor: global shutter |
| Resolution | Depth map: 1280 × 720 @ 30 fps; RGB image: 640 × 360 @ 30 fps |
| Max. frame rate | 30 fps |
| Data type | Left/right IR images, Color image, Depth map |
| Data interface | USB3.0 |
| Power supply | 5 VDC (USB 3.0 powered) |
| Power consumption | 4.5 W @ 5 VDC (USB 3.0 powered) |
| Dimension | 91 mm × 26 mm × 31.2 mm |
| Weight | Device with heat sink: Approx. 170 g (0.4 lb.); Device without heat sink: Approx. 90 g (0.2 lb.) |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Laser safety class | Class 1 |
| Client software | HiViewer |
| Operating system | 32/64-bit Windows 7/10 |
| Certification | CE |
| Shipping weight (estimated) | 0.34 kg |
