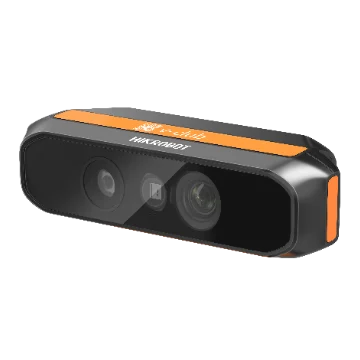

Hikrobot MV-DT01SNU ToF sensing camera
Model MV-DT01SNU
Hikrobot MV-DT01SNU ToF sensing camera. Time-of-flight technology for highly complete depth maps Synchronized high-frame-rate RGB and depth map output
Datasheet (PDF, Chinese) - MV-DT01SNUUser manual (PDF, Chinese) - MV-DT01SNUCAD: 3D STEP + 2D DXF (ZIP) - MV-DT01SNU
Features
- Time-of-flight technology for highly complete depth maps
- Synchronized high-frame-rate RGB and depth map output
- Factory-calibrated intrinsics and multi-platform SDK for fast, easy secondary development
- Ultra-small and ultra-light for any installation requirement
- Locking USB Type-C connector for more stable power output
Specifications
| Model | MV-DT01SNU |
|---|---|
| Brand | Hikrobot |
| Working range | 0.2 m ~ 1.5 m |
| Typical field of view | 500 mm × 400 mm @ 0.5 m |
| Field of view | Depth map FOV: 64° × 50°; RGB image FOV: 74° × 63° |
| Repeatability (Z-axis)* | ±(10+0.5%depth1)mm |
| Measurement accuracy | 6mm @ 1m; 10mm @ 2m |
| Resolution | Depth map: 640 × 480 @ 30 fps; RGB image: 1536 × 1280 @ 30 fps |
| Max. frame rate | 30 fps |
| Data type | Intensity image, Color image, Depth map |
| Image output latency | 133 ms2 |
| Data interface | USB3.0 |
| Power supply | 5 VDC (USB-powered) |
| Power consumption | 4.7 W @ 5 VDC (USB-powered) |
| Dimension | 91 mm × 26 mm × 31.2 mm |
| Weight | Approx. 70 g |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Laser safety class | Class 1 |
| Wavelength | 940 nm |
| Client software | HiViewer |
| Operating system | 32/64-bit Windows 7/10 |
| Certification | RoHS |
| Shipping weight (estimated) | 0.20 kg |
