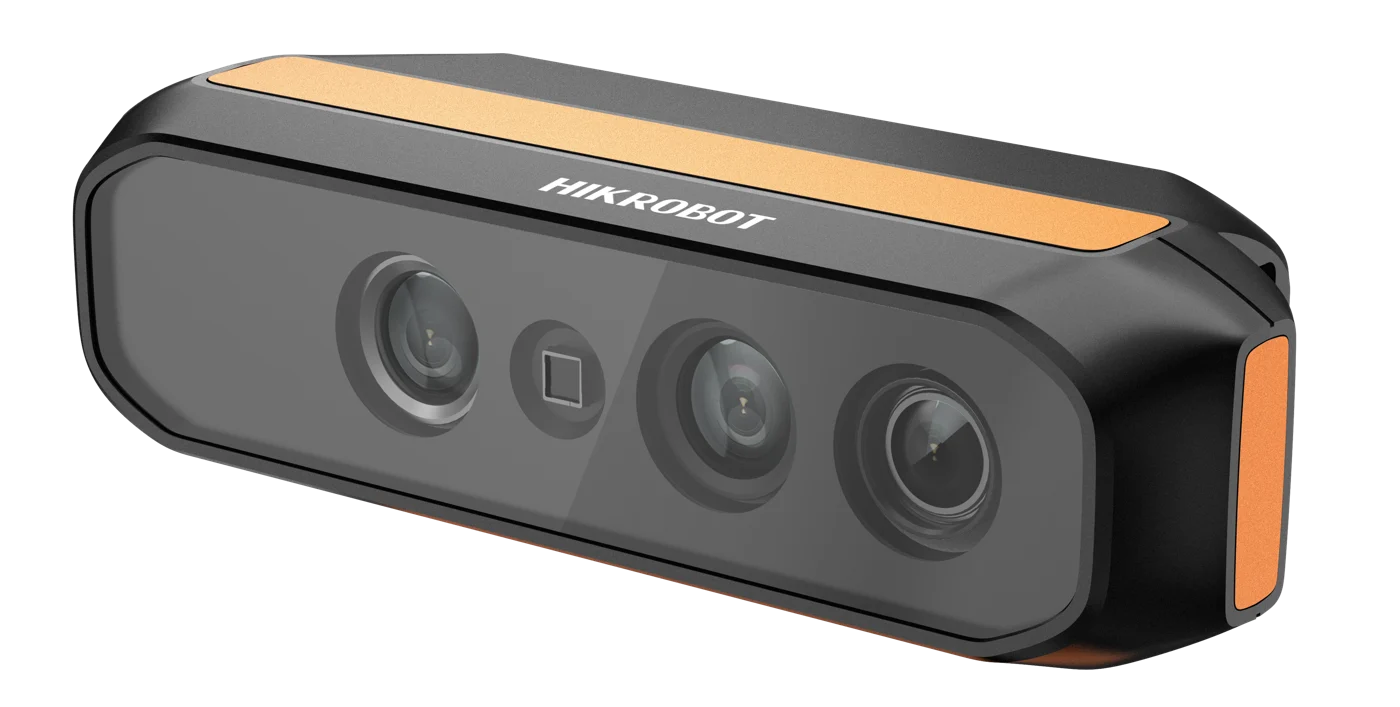

Hikrobot MV-DB02SNU RGBD smart stereo camera
Model MV-DB02SNU
Hikrobot MV-DB02SNU RGBD smart stereo camera. Active stereo technology with high-frame-rate depth map output Short-range design for near- to mid-range applications
Datasheet (PDF, Chinese) - MV-DB02SNUUser manual (PDF, Chinese) - MV-DB02SNUCAD: 3D STEP + 2D DXF (ZIP) - MV-DB02SNU
Features
- Active stereo technology with high-frame-rate depth map output
- Short-range design for near- to mid-range applications
- Factory-calibrated intrinsics and multi-platform SDK for fast, easy secondary development
- Narrow-band filter for stronger interference resistance
- Ultra-small with mounting holes on multiple sides for any installation requirement
Specifications
| Model | MV-DB02SNU |
|---|---|
| Brand | Hikrobot |
| Near field of view | 110 mm × 85 mm |
| Far field of view | 1200 mm × 1000 mm |
| Working range | 100 mm ~ 1000 mm |
| Field of view | Depth map FOV: 60° × 50° |
| Depth image detection accuracy | Z: 5 mm @ 0.5 m, 10 mm @ 1 m |
| Resolution | Depth map: 1280 × 1024 @ 17 fps; RGB image: 1536 × 1280 @ 17 fps |
| Max. frame rate | 17 fps |
| Data type | Left/right IR images, Color image, Depth map |
| Laser safety class | Class 1 |
| Data interface | USB 3.0 |
| Power supply | 5 VDC (USB 3.0 powered) |
| Power consumption | 4.7 W @ 5 VDC (USB3.0 powered) |
| Dimension | 90 mm × 26 mm × 31.2 mm |
| Weight | Approx. 87 g (0.2 lb.) |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | HiViewer |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Shipping weight (estimated) | 0.22 kg |
