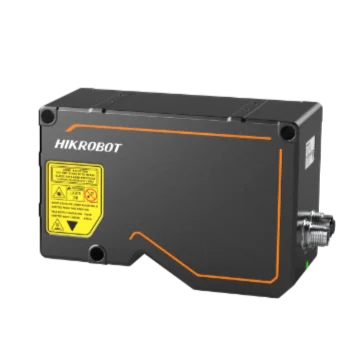

Hikrobot MV-DP4920-05MAX 3D laser profile sensor
Model MV-DP4920-05MAX
Hikrobot MV-DP4920-05MAX 3D laser profile sensor. High-frame-rate, high-resolution image sensor with large pixels FPGA hardware acceleration, scan rate up to 49 kHz
Features
- High-frame-rate, high-resolution image sensor with large pixels
- FPGA hardware acceleration, scan rate up to 49 kHz
- Custom large-aperture lens and ultra-uniform laser optics
- Ultra-high-precision sub-pixel algorithm with sub-micron precision
- Multiple exposure modes for greater robustness
- Multi-frame fusion algorithm for more complete contours
- Selectable filtering modes for more stable data
- Integrated design for easy installation and setup
Specifications
| Model | MV-DP4920-05MAX |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 4080 |
| Reference distance | 94 mm |
| Measurement range (Z-axis) | 42 mm |
| Measurement range (X-axis) | 44 mm @ near end; 51.5 mm @ reference distance; 59 mm @ far end |
| Resolution (Z-axis) | 1.87 ~ 3.98 μm |
| Repeatability (Z-axis)* | 0.66 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 10.6 ~ 15.9 μm |
| Scan frame rate | 2.5 kHz (within max. measurement range), max. 49 kHz (in ROI mode) |
| Data output | Profile data, depth image, brightness image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class 3R |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | 20.6 W@24 VDC |
| Dimension | 150.5 mm ×100.5 mm × 67 mm |
| Weight | Approx. 1150 g (2.5 lb.) |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS (V3.1.0 and above), VM3D, or third-party software |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Shipping weight (estimated) | 1.71 kg |
