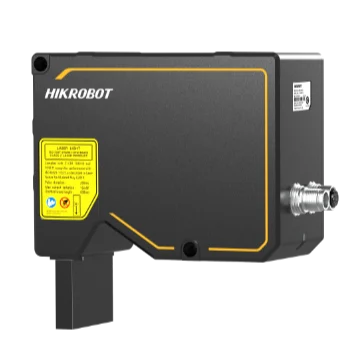

Hikrobot MV-DP4060-01PS 3D Laser Profile Sensor
Model MV-DP4060-01PS
Hikrobot MV-DP4060-01PS 3D Laser Profile Sensor. High-frame-rate, high-resolution image sensor with large pixels FPGA hardware acceleration, scan rate up to 49 kHz
Datasheet (PDF, Chinese) - MV-DP4060-01PSUser manual (PDF, Chinese) - MV-DP4060-01PSCAD: 3D STEP + 2D DXF (ZIP) - MV-DP4060-01PS
Features
- High-frame-rate, high-resolution image sensor with large pixels
- FPGA hardware acceleration, scan rate up to 49 kHz
- Custom large-aperture lens for outstanding light sensitivity
- Collimated output for a more uniform laser line
- Optimized laser beam shaping for finer detail
- Higher laser power density for wider dynamic range
Specifications
| Model | MV-DP4060-01PS |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 4080 |
| Reference distance | 60 mm |
| Measurement range (Z-axis) | 21 mm |
| Measurement range (X-axis) | 28 mm @ near field of view; 32 mm @ reference distance; 36 mm @ far field of view |
| Resolution (Z-axis) | 1.06 ~ 1.98 μm |
| Repeatability (Z-axis)* | 0.36 μm @ sensor measuring standard gauge blocks on an optical table1 |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 6.9 ~ 9.7 μm |
| Scan frame rate | 2.5 kHz (at max. measurement range), Up to 49 kHz (ROI mode) |
| Data output | Profile data, depth image, brightness image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class 2 |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | 20.6 W@24 VDC |
| Dimension | 144 mm × 150 mm × 67 mm |
| Weight | Approx. 1210 g |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS (V3.1.0 and above), VM3D, or third-party software |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Shipping weight (estimated) | 1.79 kg |
