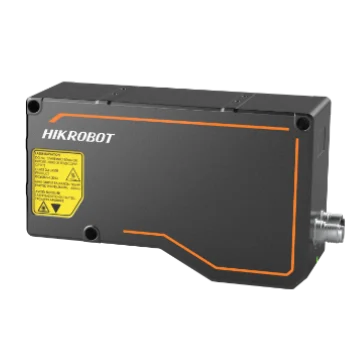

Hikrobot MV-DP4180-03P 3D Laser Profile Sensor
Model MV-DP4180-03P
Hikrobot MV-DP4180-03P 3D Laser Profile Sensor. Adopts high-speed, high-resolution, and large-pixel element image chips. Adopts FPGA hardware with 49 KHz scan frame rate.
Datasheet (PDF) - MV-DP4180-03PUser manual (PDF) - MV-DP4180-03PCAD: 3D STEP + 2D DXF (ZIP) - MV-DP4180-03P
Features
- Adopts high-speed, high-resolution, and large-pixel element image chips.
- Adopts FPGA hardware with 49 KHz scan frame rate.
- Provides customized large iris lens and ultra-uniform laser optical solution.
- Adopts ultra-high subpixel algorithm and accuracy is up to submicron level.
- Supports multiple exposure modes with good robustness.
- Adopts multiple-frame integration technology to provide complete profiles.
- Provides multiple filter modes with stable data.
- Adopts integrated design for easy installation and debugging.
Specifications
| Model | MV-DP4180-03P |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 4080 |
| Reference distance | 175 mm |
| Measurement range (Z-axis) | 100 mm |
| Measurement range (X-axis) | 75 mm @ near field of view; 100 mm @ reference distance; 125 mm @ far field of view |
| Resolution (Z-axis) | 3.72 μm to 8.40 μm |
| Repeatability (Z-axis)* | 1.5 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 18.5 μm to 32.2 μm |
| Scan frame rate | 2.5 kHz (within max. measurement range), max. 49 kHz (in ROI mode) |
| Data output | Profile data, depth image, brightness image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class 3R |
| Wavelength | 650 nm |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power consumption | Typ. 20.6 W @ 24 VDC |
| Power supply | 24 VDC |
| Dimension | 183.5 mm × 110.5 mm × 67 mm (7.2" × 4.4" × 2.6") |
| Weight | Approx. 1330 g (2.9 lb.) |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS (V3.1.0 and above), VM3D, or third-party software |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Shipping weight (estimated) | 1.96 kg |
