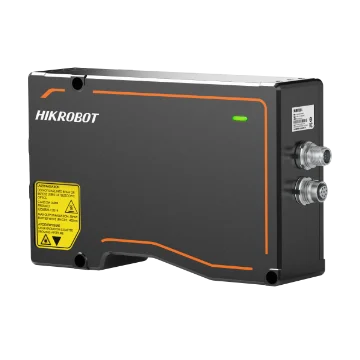

Hikrobot MV-DP3470-03P V2.0 3D line laser profile sensor DP3000 series
Model MV-DP3470-03P V2.0
Hikrobot MV-DP3470-03P V2.0 3D line laser profile sensor DP3000 series. Built-in high-precision algorithm with sub-micron accuracy High-frame-rate sensor with scan rates up to 46.7 kHz
Datasheet (PDF, Chinese) - MV-DP3470-03P V2.0User manual (PDF, Chinese) - MV-DP3470-03P V2.0CAD: 3D STEP + 2D DXF (ZIP) - MV-DP3470-03P V2.0
Features
- Built-in high-precision algorithm with sub-micron accuracy
- High-frame-rate sensor with scan rates up to 46.7 kHz
- Multiple exposure modes for greater robustness
- Multi-frame fusion algorithm for more complete contours
- Selectable filtering modes for more stable data
- ROI selection and one-click setup for easier operation
Specifications
| Model | MV-DP3470-03P V2.0 |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 3200 |
| Reference distance | 565 mm |
| Measurement range (Z-axis) | 670 mm |
| Measurement range (X-axis) | 142 mm @ near field of view; 315 mm @ reference distance; 488 mm @ far field of view |
| Resolution (Z-axis) | 10.39 ~ 169.79 μm |
| Repeatability (Z-axis)* | 4.45 μm @ sensor measuring standard gauge blocks on an optical table1 |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 43.9 ~ 177.4 μm |
| Scan frame rate | 1.68 μm @ data that sensor tests gauge block on optical platform |
| Data output | Profile data, depth image, brightness image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Data interface | Gigabit EtherNet(1000 Mbit/s), Fast Ethernet (100 Mbit/s) compatible |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Power supply | 24 VDC |
| Power consumption | 17.2 W@24 VDC |
| Dimension | 185.5 mm × 125.5 mm × 59 mm |
| Weight | 24 VDC |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Laser safety class | Class 3R |
| Wavelength | 650 nm |
| Client software | 3DMVS, VM3D, or third-party software |
| Operating system | Windows 7/10 32/64 bits, Windows 11 64-bit (8 GB RAM, i5 processor) |
| Shipping weight (estimated) | 2.20 kg |
