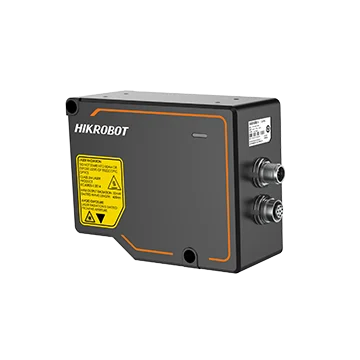

Hikrobot MIS-DP3200-01P 3D laser profile sensor
Model MIS-DP3200-01P
Hikrobot MIS-DP3200-01P 3D laser profile sensor. Built-in high-precision algorithm with sub-micron accuracy High-frame-rate sensor with scan rates up to 46.7 kHz
Features
- Built-in high-precision algorithm with sub-micron accuracy
- High-frame-rate sensor with scan rates up to 46.7 kHz
- Single-frame HDR mode for better material compatibility
- Multiple built-in filter modes for more stable profile data
- ROI selection and one-click setup for easier operation
Specifications
| Model | MIS-DP3200-01P |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 3200 |
| Reference distance | 21.4 mm |
| Measurement range (Z-axis) | 6.8 mm |
| Measurement range (X-axis) | 14 mm @ near end; 14.3 mm @ reference distance; 14.6 mm @ far end |
| Resolution (Z-axis) | 0.71 ~ 0.78 μm |
| Repeatability (Z-axis)* | 0.22 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 4.38 ~ 4.67 μm |
| Scan frame rate | 3.4 kHz to 46.7 kHz (high frame rate mode) |
| Data output | Profile data, depth image, brightness image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class3R |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Power supply | 24 VDC |
| Power consumption | 17.2 W@24 VDC |
| Dimension | 139.5 mm × 111.5 mm × 60.5 mm |
| Weight | Approx. 1075 g (2.4 lb.) |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits; (recommended: i5 processor, 8G RAM or above) |
| Shipping weight (estimated) | 1.60 kg |
