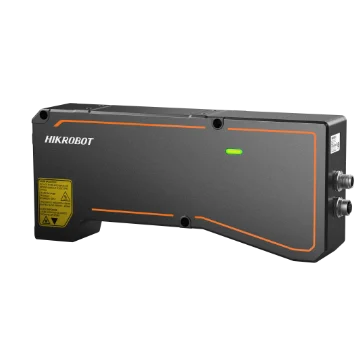

Hikrobot MV-DP3900-03P V2.0 MV-DP3900-03P(O-STD) V2.0
Model MV-DP3900-03P V2.0
Hikrobot MV-DP3900-03P V2.0 MV-DP3900-03P(O-STD) V2.0. Built-in high-accuracy algorithm and accuracy is up to submicron level. Adopts high frame rate chip with 46.7 kHz scan frame rate.
Datasheet (PDF) - MV-DP3900-03P V2.0User manual (PDF) - MV-DP3900-03P V2.0CAD: 3D STEP + 2D DXF (ZIP) - MV-DP3900-03P V2.0
Features
- Built-in high-accuracy algorithm and accuracy is up to submicron level.
- Adopts high frame rate chip with 46.7 kHz scan frame rate.
- Supports multiple exposure modes with good robustness.
- Adopts multiple-frame integration technology to provide complete profiles.
- Provides multiple filter modes with stable data.
- Supports ROI selection and auto setting for easier operation.
Specifications
| Model | MV-DP3900-03P V2.0 |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 3200 |
| Reference distance | 947.5 mm |
| Measurement range (Z-axis) | 905 mm |
| Measurement range (X-axis) | 270 mm @ near field of view; 495 mm @ reference distance; 720 mm @ far field of view |
| Resolution (Z-axis) | 23.04 μm to 185.06 μm |
| Repeatability (Z-axis)* | 8.12 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 86 μm to 268 μm |
| Scan frame rate | 3.4 kHz to 46.7 kHz (high frame rate mode) |
| Data output | Profile data, depth image, brightness image |
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Laser safety class | Class 3R |
| Wavelength | 650 nm |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Power consumption | Typ. 17.2 W @ 24 VDC |
| Power supply | 24 VDC |
| Dimension | 275.6 mm × 118.5 mm × 57 mm (10.9" × 4.7" × 2.2") |
| Weight | Approx. 1780 g (3.9 lb.) |
| Ingress protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS, VM3D, or third-party software |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Shipping weight (estimated) | 2.59 kg |
