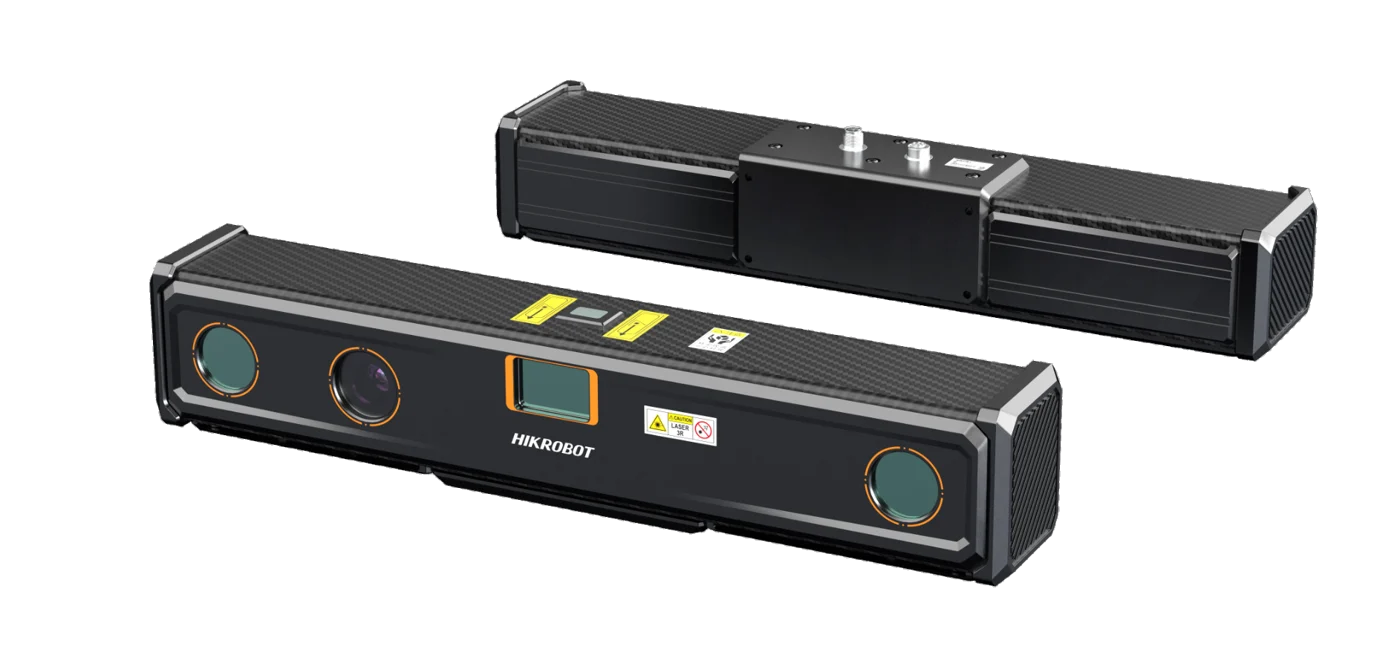

Hikrobot MV-DLS600P Laser galvanometer stereo camera
Model MV-DLS600P
Hikrobot MV-DLS600P Laser galvanometer stereo camera. Laser galvanometer scanning for sub-millimeter image acquisition accuracy Energy-efficient laser module with precise exposure synchronization for more stable performance
Datasheet (PDF, Chinese) - MV-DLS600PUser manual (PDF, Chinese) - MV-DLS600PCAD: 3D STEP + 2D DXF (ZIP) - MV-DLS600P
Features
- Laser galvanometer scanning for sub-millimeter image acquisition accuracy
- Energy-efficient laser module with precise exposure synchronization for more stable performance
- Multi-frame fusion overcomes glare from reflective metal surfaces
- Synchronized, aligned RGB and depth map output for easy secondary development
- Narrow-band filter for stronger interference resistance and wider dynamic range
- Carbon-fiber housing for a lighter, tougher unit
Specifications
| Model | MV-DLS600P |
|---|---|
| Brand | Hikrobot |
| Near field of view | 580 mm × 520 mm |
| Far field of view | 1220 mm× 960 mm |
| Clearance distance (CD) | 1200 mm |
| Measurement range (MR) | 1000 mm |
| Resolution | 3072 × 2048 @ RGB image; 1440 × 1080 @ depth map |
| Depth image detection accuracy | X, Y:0.5 [email protected] m; 1 mm@2 m; Z:0.2 [email protected] m; 0.4 mm@2 m |
| Color image detection accuracy | X, Y:0.5 [email protected] m; 1 mm@ 2m |
| Scan frame rate | 1 fps |
| Data type | Raw image (mono + color), Depth map, RGB-D image, Dynamic mask image |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 15 W@24 VDC |
| Dimension | 492 mm × 99.2 mm × 94.5 mm |
| Weight | Approx. 2.5 kg (5.5 lb.) |
| Ingress protection | IP65 |
| Temperature | Operating temperature: 0 to 40 °C, Storage temp.: -30 to 80 °C |
| Humidity | 20% to 85% RH (non-condensing) |
| Laser safety class | Class 2 |
| Wavelength | 638 nm |
| Maximum power | 10 mW |
| Client software | HiViewer, RobotPilot |
| Operating system | Windows 7/10/11 32/64bits |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 3.60 kg |
