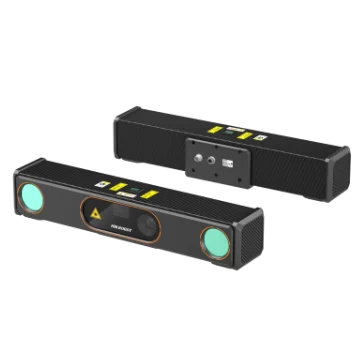

Hikrobot MV-DLS1400P Laser galvanometer stereo camera
Model MV-DLS1400P
Hikrobot MV-DLS1400P Laser galvanometer stereo camera. Laser galvanometer scanning for sub-millimeter image acquisition accuracy Multi-frame fusion overcomes glare from reflective metal surfaces
Datasheet (PDF, Chinese) - MV-DLS1400PUser manual (PDF, Chinese) - MV-DLS1400PCAD: 3D STEP + 2D DXF (ZIP) - MV-DLS1400P
Features
- Laser galvanometer scanning for sub-millimeter image acquisition accuracy
- Multi-frame fusion overcomes glare from reflective metal surfaces
- Energy-efficient laser module with precise exposure synchronization for more stable performance
- Synchronized, aligned RGB and depth map output for easy secondary development
- Narrow-band filter for stronger interference resistance and wider dynamic range
- Extra-large field of view for a wider range of applications
Specifications
| Model | MV-DLS1400P |
|---|---|
| Brand | Hikrobot |
| Near field of view | 1400 mm × 1200 mm |
| Far field of view | 3300 mm× 2700 mm |
| Clearance distance (CD) | 1500 mm |
| Measurement range (MR) | 2000 mm |
| Resolution | 4000 × 3000 @ RGB image; 1920 × 1456 @ depth map |
| Depth image detection accuracy | X, Y:0.8 [email protected] m; 1.4 mm@3 m; Z:0.3 [email protected] m; 1.0 mm@3 m |
| Color image detection accuracy | X, Y:0.4 [email protected] m; 0.8 mm@3m |
| Scan frame rate | 1 fps |
| Data type | Raw image (mono + color), Depth map, RGB-D image, Dynamic mask image |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 15W@24 VDC |
| Dimension | 538 mm × 101 mm × 117.8 mm |
| Weight | Approx. 3.34 kg |
| Ingress protection | IP65 |
| Temperature | Operating temperature: 0 to 40 °C, Storage temp.: -30 to 80 °C |
| Humidity | 20% to 85% RH (non-condensing) |
| Laser safety class | Class 3R |
| Wavelength | 638 nm |
| Client software | RobotPilot, HiViewer |
| Operating system | Windows 7/10/11 32/64bits |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 4.78 kg |
