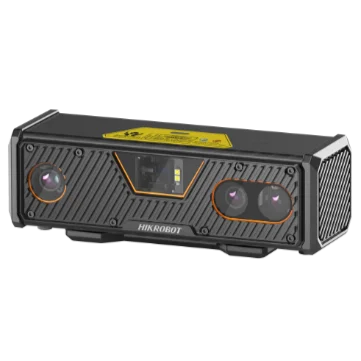

Hikrobot MV-3DWXQ1-SX6-3 Laser galvanometer stereo camera
Model MV-3DWXQ1-SX6-3
Hikrobot MV-3DWXQ1-SX6-3 Laser galvanometer stereo camera. Custom optical system for excellent image quality Highly uniform laser for complete, detailed point clouds
Features
- Custom optical system for excellent image quality
- Highly uniform laser for complete, detailed point clouds
- Multi-core parallel processing architecture for high efficiency
- Synchronized, aligned RGB and depth maps for fast, easy secondary development
- Lightweight design: small size, high stability, flexible installation
Specifications
| Model | MV-3DWXQ1-SX6-3 |
|---|---|
| Brand | Hikrobot |
| Near field of view | 280 mm × 220 mm@400 mm |
| Typical field of view | 480 mm × 320 mm@600 mm |
| Far field of view | 620 mm × 440 mm@800 mm |
| Clearance distance (CD) | 400 mm |
| Measurement range (MR) | 400 mm |
| Repeatability (Z-axis)* | 0.03 mm@600 mm1 |
| VDI/VDE accuracy | 0.05 mm@600 mm2 |
| Resolution | 3200 × 1944 @ RGB image; 1632 × 1080 @ depth map |
| Acquisition time | 0.4~0.9s |
| Image output latency | 0.8~1.5s |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Laser safety class | Class 2 |
| Wavelength | 450 nm |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 VDC |
| Power consumption | 15 W@24 V DC |
| Dimension | 236.3 mm × 79.8 mm × 98.5 mm |
| Weight | Approx. 1.3 kg |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Client software | RobotPilot, HiViewer |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits |
| Certification | RoHS |
| Shipping weight (estimated) | 1.92 kg |
