Area scan cameras

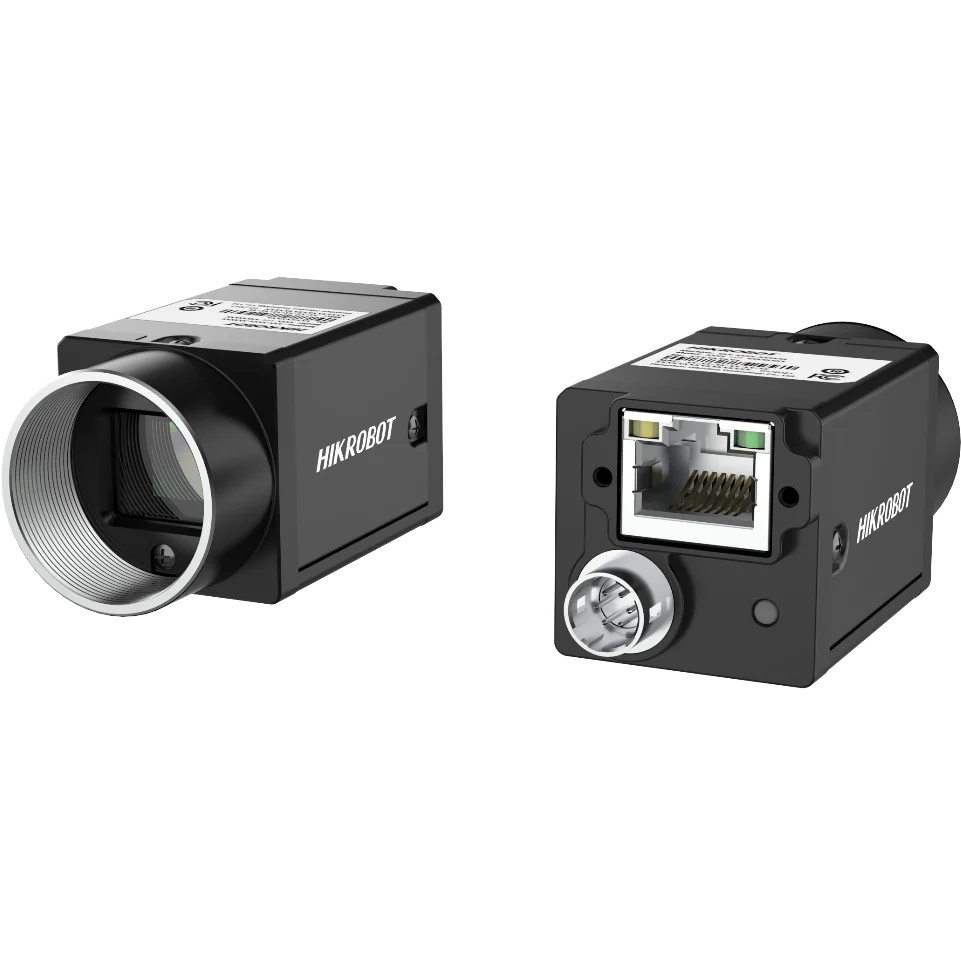

Hikrobot MV-CU013-A0GC 1.3MP Area Scan Camera, GigE, Color, with PoE
Model MV-CU013-A0GC
Hikrobot MV-CU013-A0GC 1.3MP Area Scan Camera, GigE, Color, with PoE. Adopts low power consumption design with stable performance. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
Features
- Adopts low power consumption design with stable performance.
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CU013-A0GC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Pixel size | 4.8 μm × 4.8 μm |
| Sensor size | 1/2" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 90.2 fps@1280 × 1024 Bayer GB 8 |
| Dynamic range | 54 dB |
| SNR | 40.6 dB |
| Gain | 0 dB to 16 dB |
| Exposure time | 10 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer GB 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, PoE is optional |
| Power consumption | Typ. 1.8 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
